EVAL-2ED2101-HB-LLC

200 W HB-LLC 500 kHz evalulation board with 2ED2101S 650 V HS+LS driver and 2ED24427N 24 V low side driver
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-2ED2101-HB-LLC
EVAL-2ED2101-HB-LLC
ea.
User Manual

Product details

  • Applications
    SMPS, HB-LLC resonant ZVS converters, LED Luminaires, Power Bricks and chargers
  • Board Type
    Evaluation Board
  • Dimensions
    65x37x119
  • Family
    HVAC
  • Input Type
    DC
  • Interfaces
    MADK
  • Motor Power max
    200 W
  • Product Name
    EVAL-2ED2101-HB-LLC
  • Qualification
    Industrial
  • Sub Application
    Power Factor Correction, Induction Cooking, Induction Heating
  • Target Application
    Power Bricks and chargers, SMPS, HB-LLC resonant ZVS converters, LED Luminaires
  • Topology
    LLC, Flyback
Recommended
OPN
EVAL2ED2101HBLLCTOBO2
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

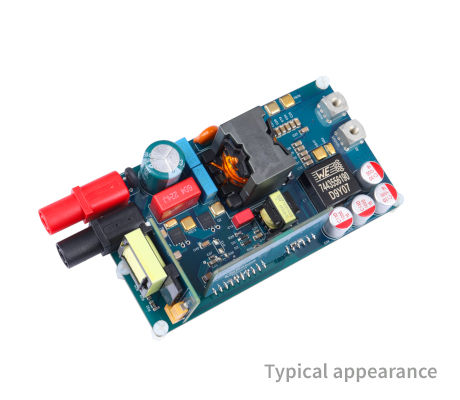

The EVAL-2ED2101-HB-LLC demonstrates thin-film SOI technology and advanced control for an HB-LLC converter with synchronous rectification. With high switching frequencies up to 500kHz, it offers benefits such as lower EMI, reduced component size, and overall system cost. Ideal for various applications including lighting, SMPS, UPS, server supplies, and consumer electronics.

Features

  • 650 V HB-LLC direct drive topology
  • 500 kHz switching
  • Transf. integrates reso. inductance
  • 2ED2101S06F SOI level-shift driver
  • 2ED24427N01F low-side gate driver

Applications

Bill of Material

Documents

Documents

Design resources

Diagrams

200W-LLC-2ED2101-BlockDiagramm
200W-LLC-2ED2101-BlockDiagramm
200W-LLC-2ED2101-BlockDiagramm 200W-LLC-2ED2101-BlockDiagramm 200W-LLC-2ED2101-BlockDiagramm
×
