EVAL_1EDL8011_84V_50A

1EDL8011 - integrated high side disconnect switch gate driver evaluation board for battery powered applications.
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_1EDL8011_84V_50A
EVAL_1EDL8011_84V_50A
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Configuration
    1EDL8011, IPT039N15N5
  • Family
    Gate Driver
  • Input Type
    DC
  • Output Current max
    50 A
  • Pout max
    4.2 kW
  • Qualification
    Industrial
  • Sub Application
    Motor Control & Drives
  • Supply Voltage range
    10 V to 84 V
  • Target Application
    Battery Powered Application
Recommended
OPN
EVAL1EDL801184V50ATOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

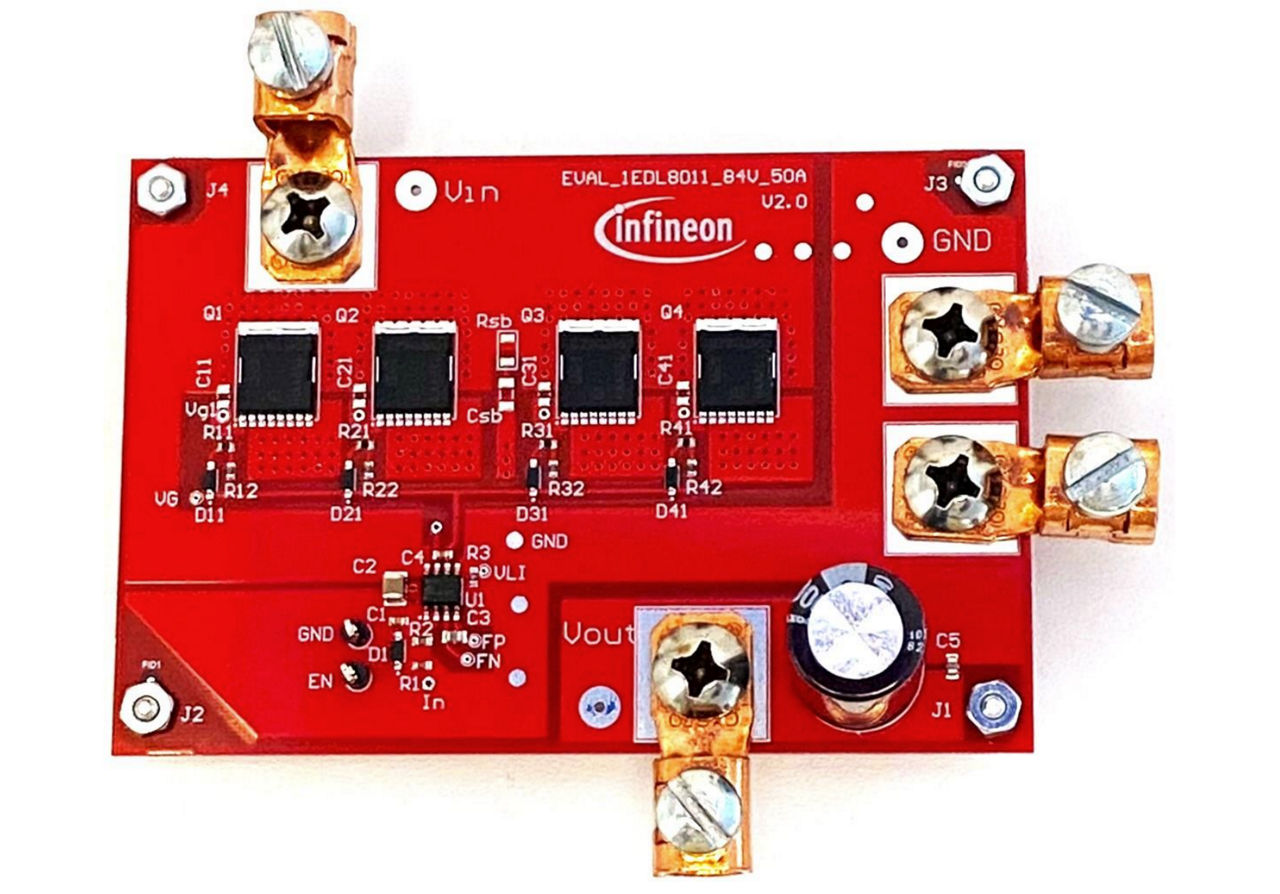

The evaluation board EVAL_1EDL8011_84V_50A is developed for battery powered applications that require an integrated gate driver for disconnect switch for battery protection. With wide DC input range of 10 to 84 V, this board enables evaluation of various battery platforms.

Features

  • DC input voltage range: 10 V to 84 V
  • Maximum output current: 50 A
  • Maximum output continuous power: 4.2 kW
  • Featuring OptiMOS™ 5 FET: IPT039N15N5

Benefits

  • Reduced components and lower BOM
  • Design over various battery platforms
  • Increased system reliability
