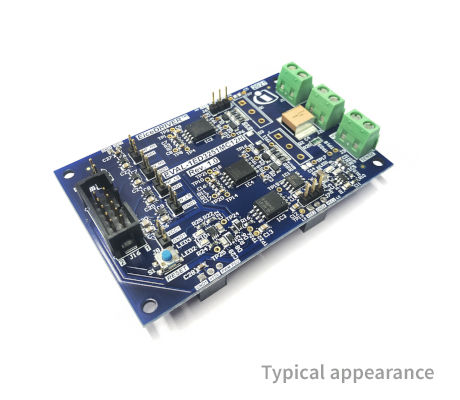

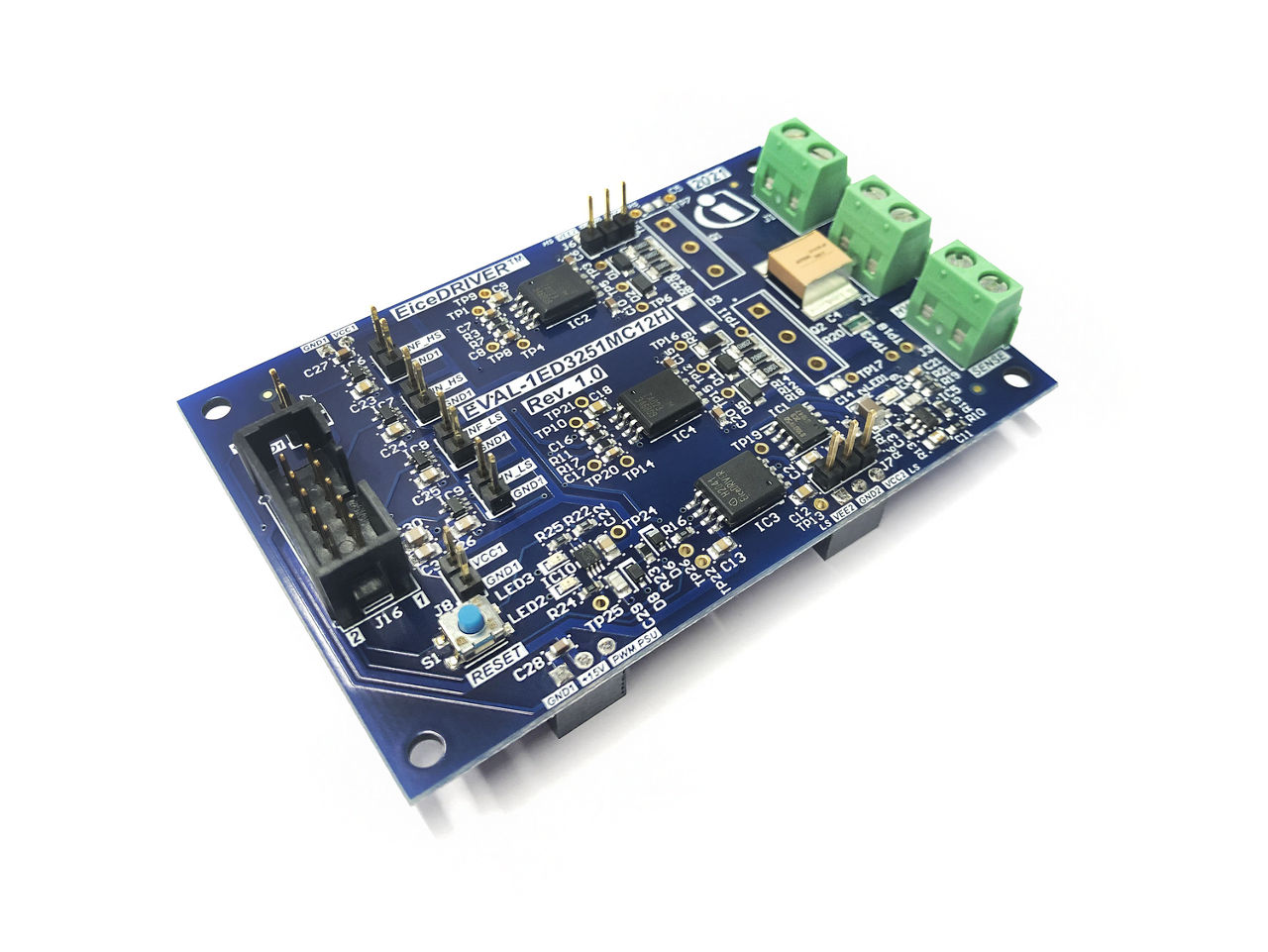

EVAL-1ED3251MC12H

Evaluation board for EiceDRIVER™ 2L-SRC Compact with two-level slew-rate control
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-1ED3251MC12H
EVAL-1ED3251MC12H
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    85,25x55.8x20 mm
  • Family
    Gate Driver, CoolSiC™ MOSFET
  • Input Type
    DC
  • Product Name
    EVAL-1ED3251MC12H
  • Qualification
    Industrial
  • Target Application
    AC and brushless DC motor drives, High voltage DC/DC converter and DC/AC inverter, Welding, UPS
  • Topology
    High-side switch, Low-side switch
Recommended
OPN
EVAL1ED3251MC12HTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The EVAL-1ED3251MC12H utilizes two-level slew-rate control (2L-SRC) enabled gate driver ICs (1ED3251MC12H) with an active Miller clamp for evaluating slew-rate control switching. It is suitable for TRENCHSTOP™ IGBT7 IKQ75N120CS7 and SiC MOSFETs, offering 18A peak output current and operates over a wide voltage range in unipolar or bipolar configurations.

Features

  • Single channel isolated gate driver
  • Two-level slew-rate control feature
  • For 650V/1200V/1700V/2300V switches
  • 2300 V func. offset voltage capable
  • Galvanically isolated gate driver
  • 18 A typ. sink & source peak outp.
  • 40 V absolute max. output voltage
  • Max. 110 ns propagation delay
  • High CMTI >200 kV/μs
  • Short-circuit clamping
  • Active shutdown
  • DSO-8 300 mil wide-body package
