not for new design

EVAL-1ED020I12-BT

Evaluation Board for 1200 V 1ED020I12-BT single high-side gate driver IC
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-1ED020I12-BT
EVAL-1ED020I12-BT
ea.
Application Notes

Product details

  • Applications
    Solar, UPS
  • Board Type
    Evaluation Board
  • Dimensions
    85x55
  • Family
    CoolSiC™ MOSFET, Gate Driver, IGBT Discrete
  • Frequency
    0 kHz to 20 kHz
  • Input Type
    DC
  • Interfaces
    Others
  • Mounting
    Surface Mount (SMD), Through Hole
  • Output Current (Sink)
    2 A
  • Output Current (Source)
    2 A
  • Output Current
    0 A to 25 A
  • Output Voltage
    15 V to 800 V
  • Pout
    0 W to 20000 W
  • Product Name
    EVAL-1ED020I12-BT
  • Qualification
    Industrial
  • Sub Application
    UPS, Solar, Power Management
  • Supply Voltage
    15 V to 800 V
  • Target Application
    Data Processing, Solar Energy Systems, Smart Grid, Power Supplies, Motor Control & Drives, Industrial, Electromobility
  • Topology
    Half Bridge
OPN
EVAL1ED020I12BTTOBO1
Product Status not for new design
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package --
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

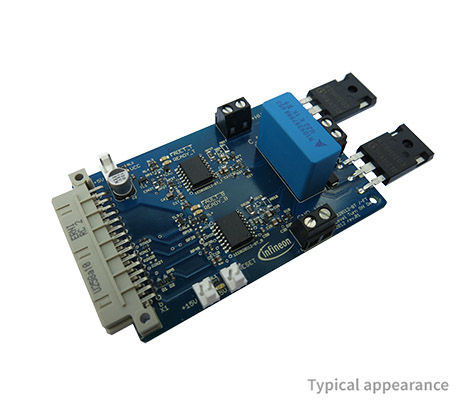

This gate driver evaluation board was developed to show the functionalities and key features of the IGBT gate driver 1ED020I12-BT (applied also to 1ED020I12-FT ) galvanic isolated single channel IGBT driver IC with CT technology for 600V/1200V IGBTs .

Features

  • 1200V coreless transformer ICs
  • 2 A rail-to-rail outputs
  • Protection function
  • VCEsat-detection
  • Active Miller Clamp
  • Two level turn off

Applications
