EVAL_12W_3PH_SM_P7

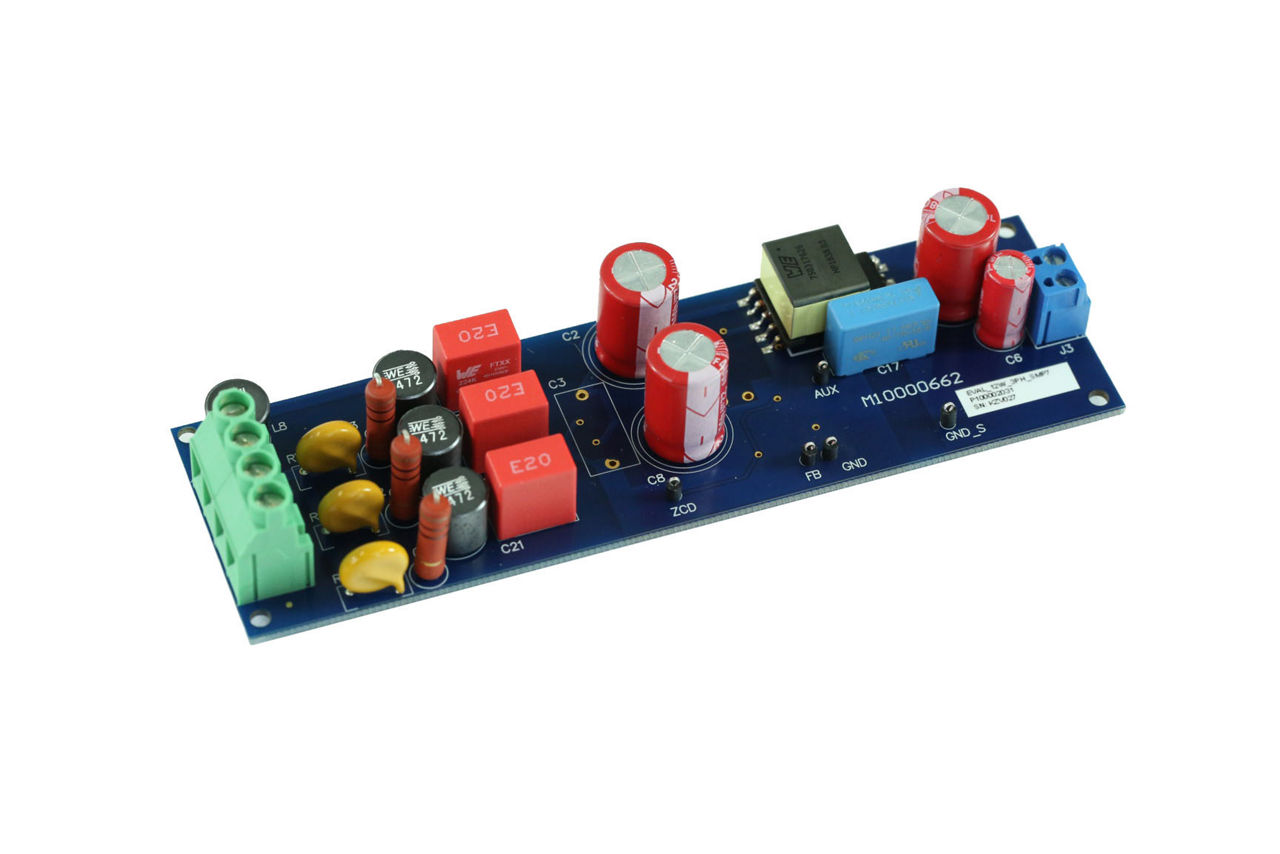

12W AC/DC power supply evaluation board featuring 950V CoolMOS™ P7 Superjunction MOSFET
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_12W_3PH_SM_P7
EVAL_12W_3PH_SM_P7
ea.
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    150x45cm
  • Family
    MOSFET, LED Driver & Ballast Controller
  • Input Type
    AC
  • Interfaces
    none
  • Mounting
    DPAK/SOT-223/TO-220(FP)
  • Output Current
    0 A to 1 A
  • Output Voltage
    11 V to 12 V
  • Pout
    0 W to 12 W
  • Product Name
    EVAL_12W_3PH_SM_P7
  • Qualification
    Industrial
  • Sub Application
    Smart Meter/Home appliance
  • Supply Voltage
    185 V to 460 V
  • Target Application
    Power Supplies
  • Topology
    Flyback
OPN
EVAL12W3PHSMP7TOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The 12W AC/DC power supply is tailored for a 3-phase smart electricity meter, showcasing the 950V CoolMOS™ P7 SJ MOSFET, QR PWM controller, and NPN silicon AF transistor. It serves as a reference for smart meter designers, offering insight into powering up using state-of-the-art SJ technology. With over 82% efficiency at full load, wide AC input range, and improved thermal performance, it meets essential technical requirements.

Features

  • Wide input range: 185-460AC Vin
  • Output voltage: 12V Iout 1A
  • Efficiency: >82% at full load
  • Using the latest CoolMOS™ series
  • Equipped with QR PWM controller

Benefits

  • Output short protection
  • Low standby power
  • Possible costs reduction (SOT-223)
  • Better thermal performance

Applications
