Active and preferred
RoHS Compliant

EB 2ED2410 3D 1BCSP

EiceDRIVER™ APD 2ED2410-EM - 24 V evaluation MOSFET daughterboard, common source, pre-charging
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EB 2ED2410 3D 1BCSP
EB 2ED2410 3D 1BCSP
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    EiceDRIVER™ Gate Driver, OptiMOS™
  • Input Type
    DC
  • Qualification
    Automotive
  • Supply Voltage
    3 V to 36 V
  • Target Application
    Automotive, Relays, Power Distribution, construction and agricultural vehicles (CAV)
  • Topology
    High-Side, Back to Back common drain, High-side switch
Recommended
OPN
EB2ED24103D1BCSPTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The daughterboard EB 2ED2410 3D 1BCDP is part of a family of evaluation boards used in automotive power distributions for 12 and 24 V board nets. It features two 60 V OptiMOSTM5 power MOSFETs (1.1 mOhm) in a back2back common source configuration and a pre-charge path. Other available daughterboards include EB 2ED2410 3D 1BCS and EB 2ED2410 3D 1BCD, both with 60 V OptiMOSTM5 power MOSFETs (1.1 mOhm), back2back configuration, and a 0.5 mOhm shunt.

Features

  • Suitable for 12 and 24 V board nets
  • In combination with board EB 2ED2410 3M
  • 0,5 mOhm shunt resistor
  • 60 V OptiMOSTM5 power MOSFET
  • MOSFET temp monitoring using NTC
  • Dedicated pre-charge path for loads
  • 20 A continuous or 30 A for 10 min

Applications

Bill of Material

Documents

Documents

Design resources

Diagrams

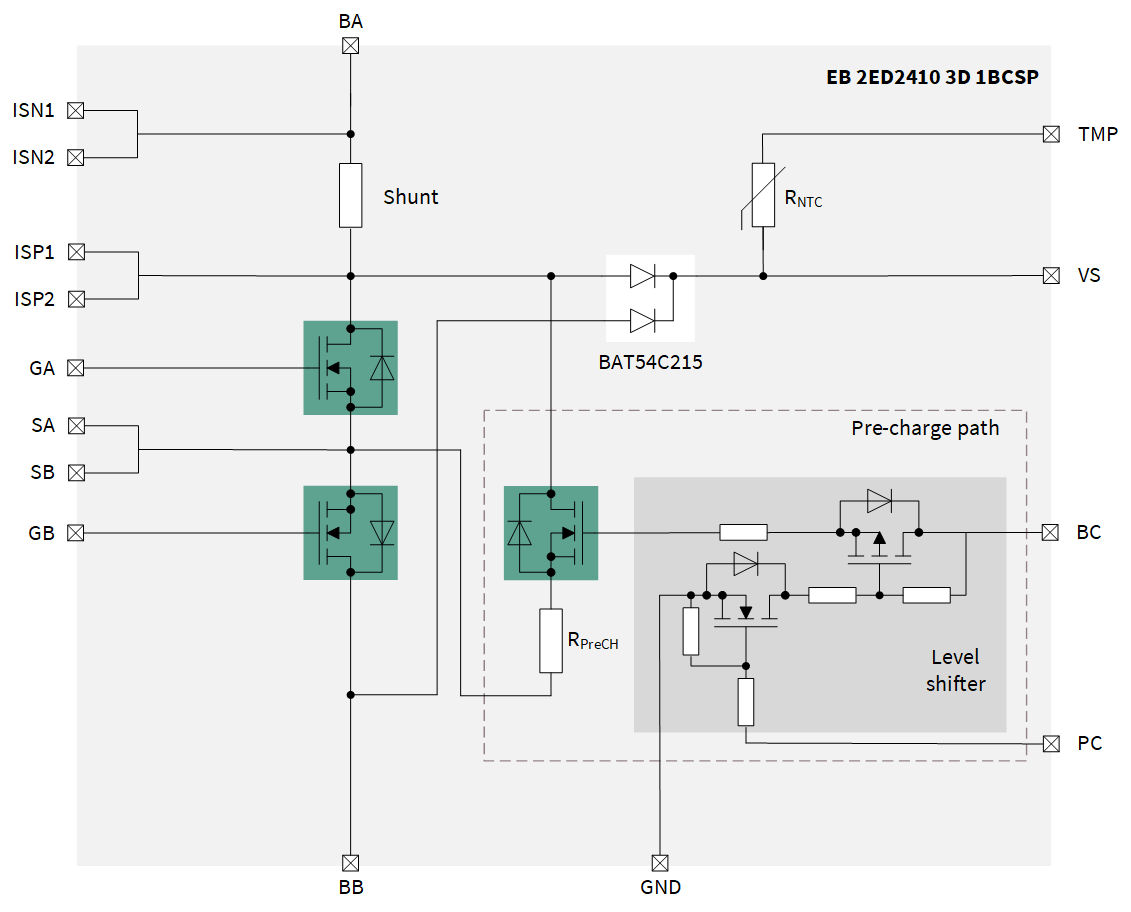

EB-2ED2410-3D-1BCSP-schematics
EB-2ED2410-3D-1BCSP-schematics
EB-2ED2410-3D-1BCSP-schematics EB-2ED2410-3D-1BCSP-schematics EB-2ED2410-3D-1BCSP-schematics
×
