EB 2ED2410 3D 1BCDP

EiceDRIVER™ APD 2ED2410-EM - 24 V evaluation MOSFET daughterboard, common drain, pre-charging
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EB 2ED2410 3D 1BCDP
EB 2ED2410 3D 1BCDP
ea.
User Manual

Product details

  • Dimensions
    60 mm x 47 mm
  • Family
    EiceDRIVER™ Gate Driver, OptiMOS™
  • Input Type
    DC
  • Qualification
    Automotive
  • Supply Voltage
    3 V to 36 V
  • Target Application
    Automotive, Relays, Power Distribution, Construction and agricultural vehicles (CAV)
  • Topology
    High-Side, Back to Back common drain, High-side switch
Recommended
OPN
EB2ED24103D1BCDPTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
This daughterboard (EB 2ED2410 3D 1BCDP) is part of a family of evaluation boards for automotive power distributions. It consists of two 60V OptiMOSTM5 power MOSFETs (1.1 mOhm) in a back2back common drain configuration. It can address one load channel and offers a dedicated pre-charge path. Other available daughterboards include EB 2ED2410 3D 1BCS, EB 2ED2410 3D 1BCD and EB 2ED2410 3D 1BCSP, each with their own unique configurations and features.

Features

  • Suitable for 12 and 24 V board nets
  • In combination with board EB 2ED2410 3M
  • 0,5 mOhm shunt resistor
  • 60 V OptiMOSTM5 power MOSFET
  • MOSFET temp monitoring using NTC
  • Dedicated pre-charge path for loads
  • 20 A continuous or 30 A for 10 min

Applications

Bill of Material

Documents

Documents

Design resources

Diagrams

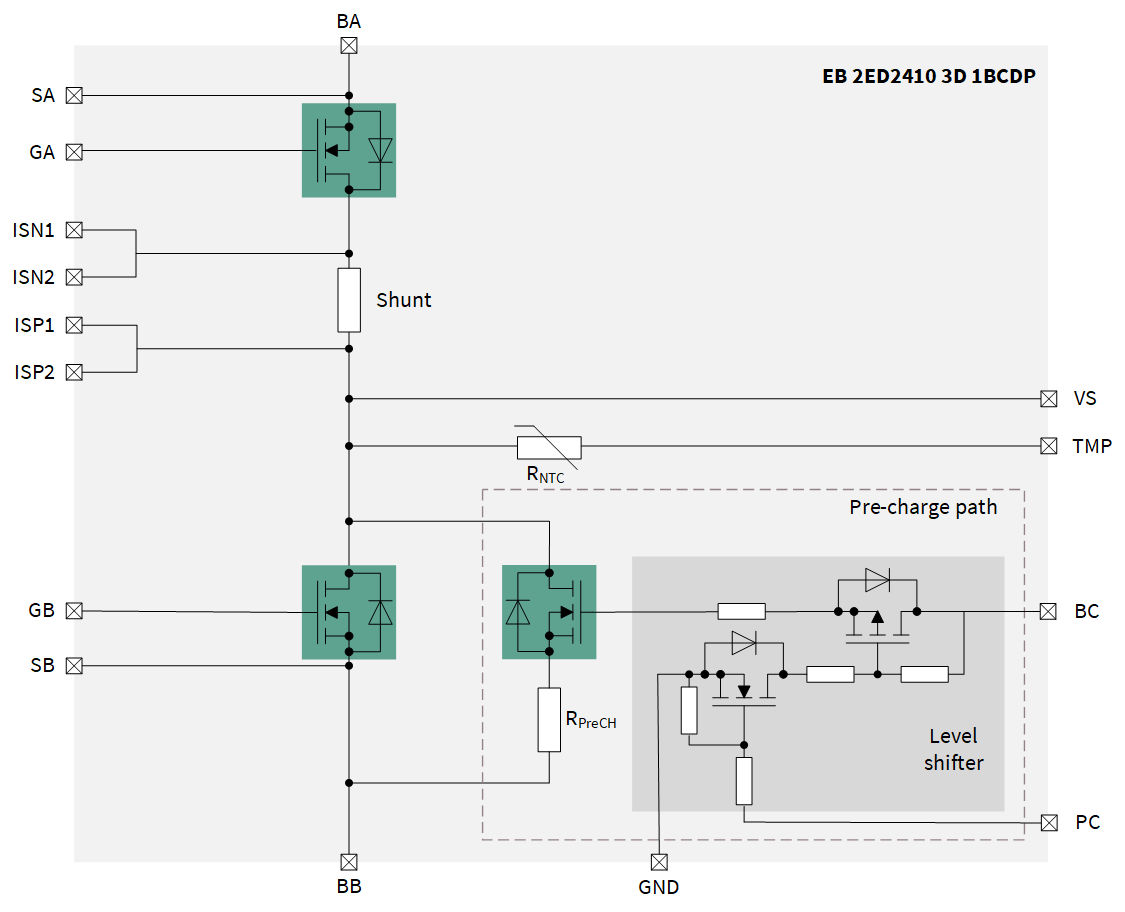

EB-2ED2410-3D-1BCDP-schematics
EB-2ED2410-3D-1BCDP-schematics
EB-2ED2410-3D-1BCDP-schematics EB-2ED2410-3D-1BCDP-schematics EB-2ED2410-3D-1BCDP-schematics
×
