Active and preferred

DEMOBOARD TLF50201EL

User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DEMOBOARD TLF50201EL
DEMOBOARD TLF50201EL
User Manual

Product details

  • Applications
    Standard device for all applications
  • Board Type
    Evaluation Board
  • Family
    DC-DC Converter, OPTIREG™ Switcher
  • Input Type
    DC
  • Output Voltage
    5 V
  • Product Name
    DEMOBOARD TLF50201EL
  • Qualification
    Automotive
  • Sub Application
    Standard device for all applications
  • Supply Voltage
    13.5 V
  • Target Application
    Automotive
  • Topology
    Buck
Recommended
OPN
DEMOBOARDTLF50201ELTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

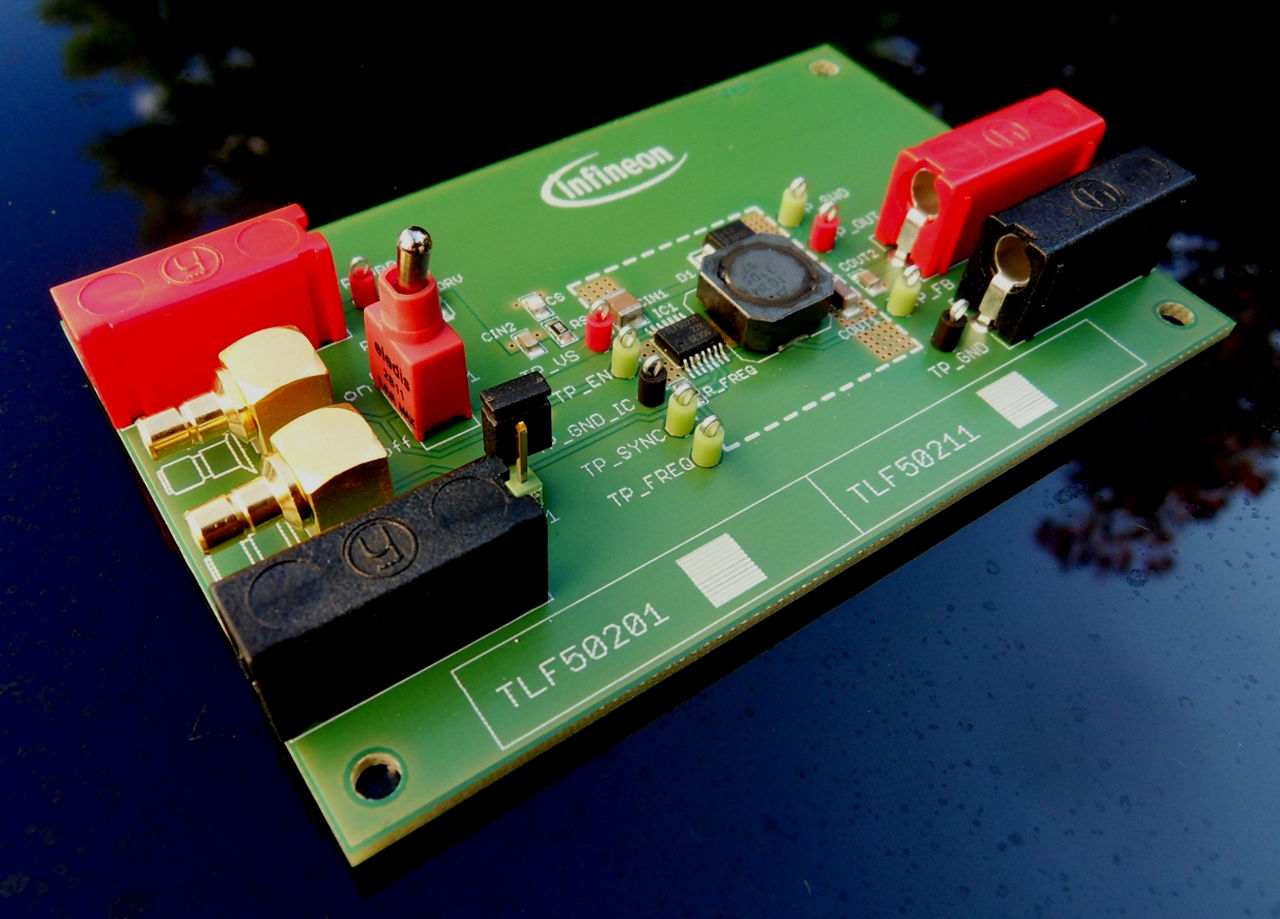

This application board enables you to test the performance of the TLF50201/211EL step down converter. It is equipped with a TLF50201EL for 5.0V output voltage. The board shows a possible space efficient layout for the core.See also TLF50211COREBOARD
