DEMO_XDPS2201_65W1

Ultra-high density 65 W USB-PD PPS charger with XDPS2201
Application Notes
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DEMO_XDPS2201_65W1
DEMO_XDPS2201_65W1
Application Notes

Product details

  • Board Type
    Demo Board
  • Dimensions
    46 (L) x 37 (W) x 20.2 (H) mm
  • Family
    XDPS, P-Channel MOSFET
  • Input Type
    AC
  • Output Current max
    3.25 A
  • Output Voltage
    5 V to 20 V, 20 V, 5 V, 9 V, 12 V, 15 V
  • Pout max
    65 W
  • Product Name
    DEMO_XDPS2201_65W1
  • Qualification
    Industrial
  • Sub Application
    Offline SMPS
  • Target Application
    Charger, Consumer, Power Supplies, SMPS
  • Topology
    Hybrid flyback
Recommended
OPN
DEMOXDPS220165W1TOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

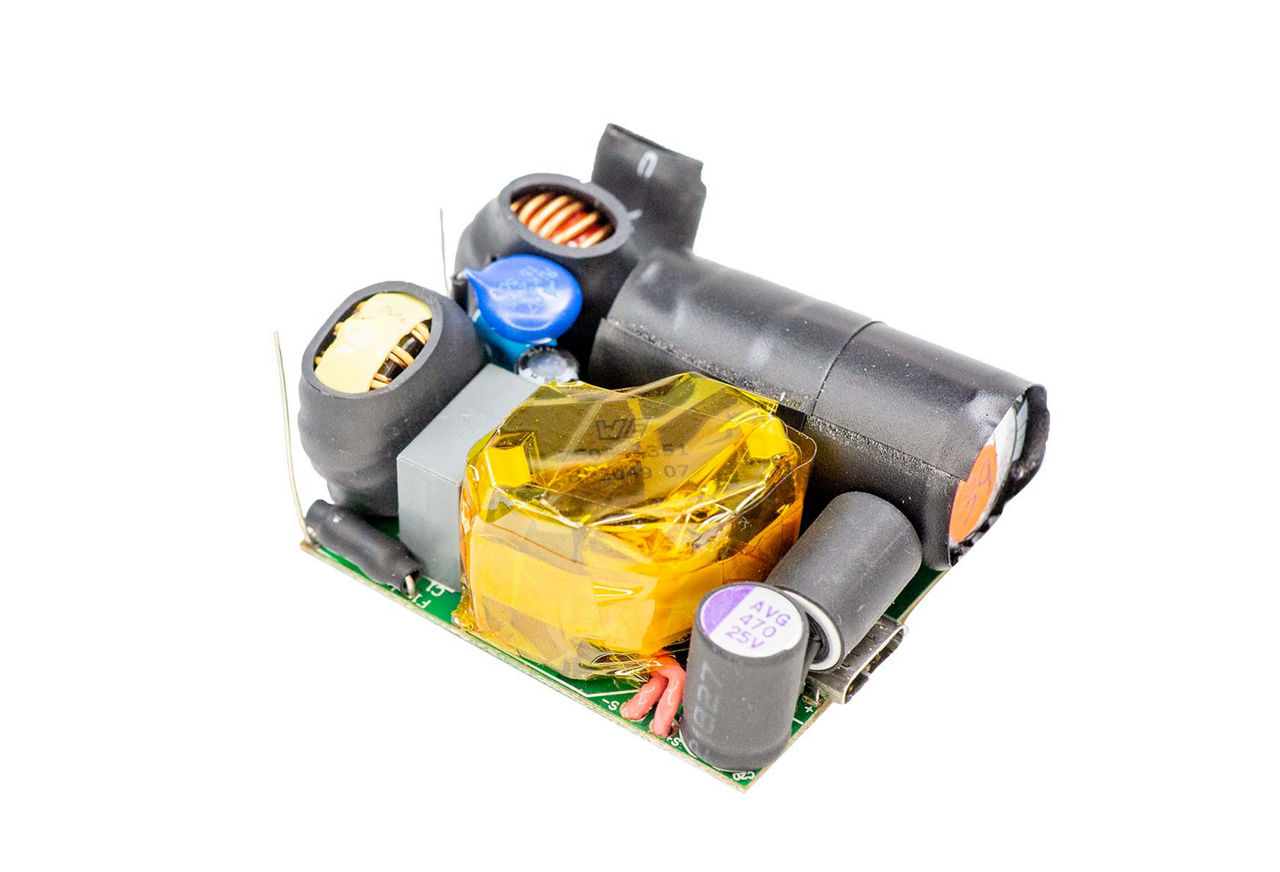

The 65W USB-PD type C PPS charger demo board leverages Infineon XDPS2201 and two CoolMOS™ superjunction MOSFETs in a half-bridge configuration. It demonstrates high power density and efficiency, supporting both fixed and PPS output in an ultra-compact form factor. The board features various MOSFETs and an EZ-PD™ CCG3PA USB Type-C controller.

Features

  • High power density PCBA design of 31 W/in3
  • Peak efficiency of 93.8 %
  • Wide input voltage 90~264 VAC
  • Fixed output: 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/3.25 A
  • PPS output: 5~20 V / 3 A

Benefits

  • Ease-of-customization with compact form factor design
  • Reduce BOM count and cost
  • High efficiency and low standby power consumption to meet international regulatory requirements
