700mA linear LED controller demonstration board
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DEMO_BCR601_60V_IVCTRL
DEMO_BCR601_60V_IVCTRL
Application Notes

Product details

  • Board Type
    Demo Board
  • Dimensions
    61 mm x 27 mm
  • Family
    Small signal MOSFETs
  • Input Type
    DC
  • Interfaces
    1 x 'WR-TBL Serie 3093 - 3.81 mm Horizontal Reserved PCB Header, 06p 1x 'WR-TBL Serie 4183 - 3.81 mm 45° Entry Screwless, 4p
  • Mounting
    SMD
  • Output Current
    0 mA to 700 mA
  • Output Voltage
    8 V to 60 V
  • Pout
    0 W to 36 W
  • Product Name
    DEMO_BCR601_60V_IVCTRL
  • Qualification
    Consumer
  • Sub Application
    Lightin engine
  • Supply Voltage
    8 V to 60 V
  • Target Application
    Lighting, LED Lighting
  • Topology
    Linear
OPN
DEMOBCR60160VIVCTRLTOBO1
Product Status discontinued
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status discontinued
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

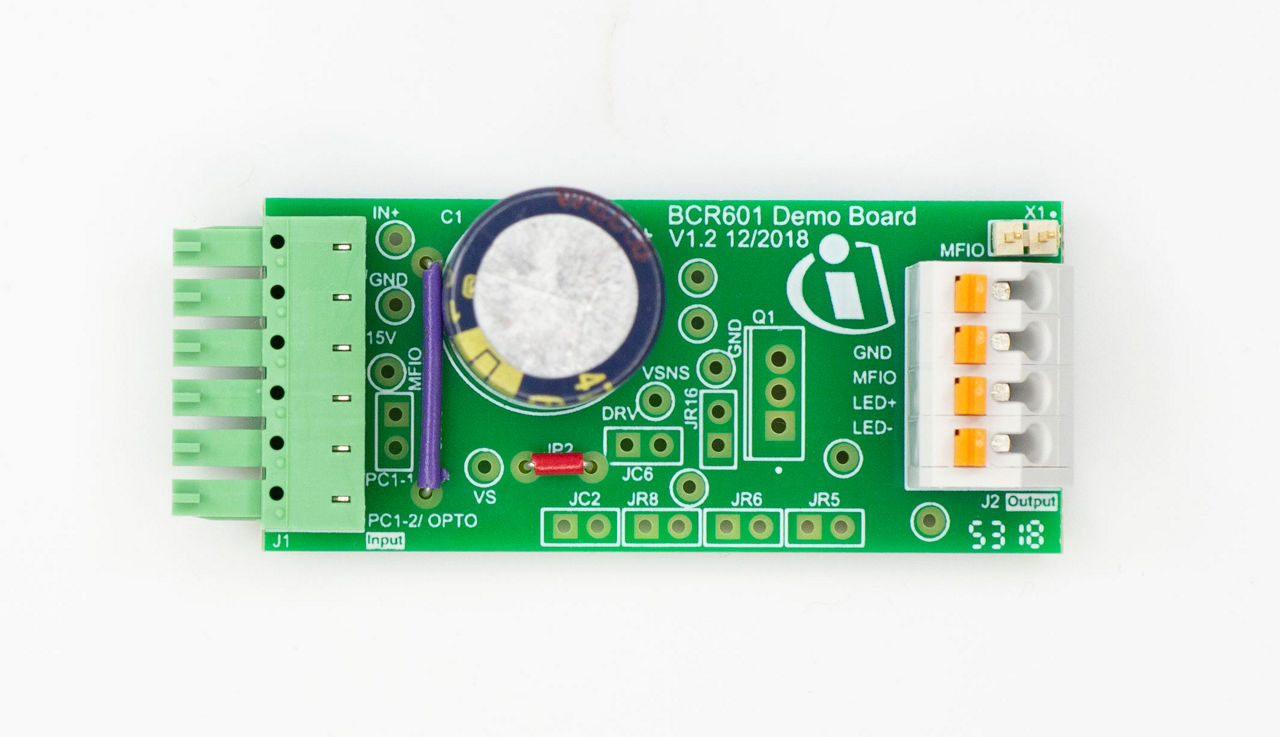

The BCR601 demo board features a 60V linear DC-DC LED controller IC for general lighting. It offers linear current regulation, protection features, analog dimming, and active headroom control for voltage and current. This board is designed for evaluating cost-efficient, reliable LED drivers with a 700mA output. Additionally, a modular reference design with the XDPL8219 board is available.
