DEMO_AC_ZVS_HVBDS

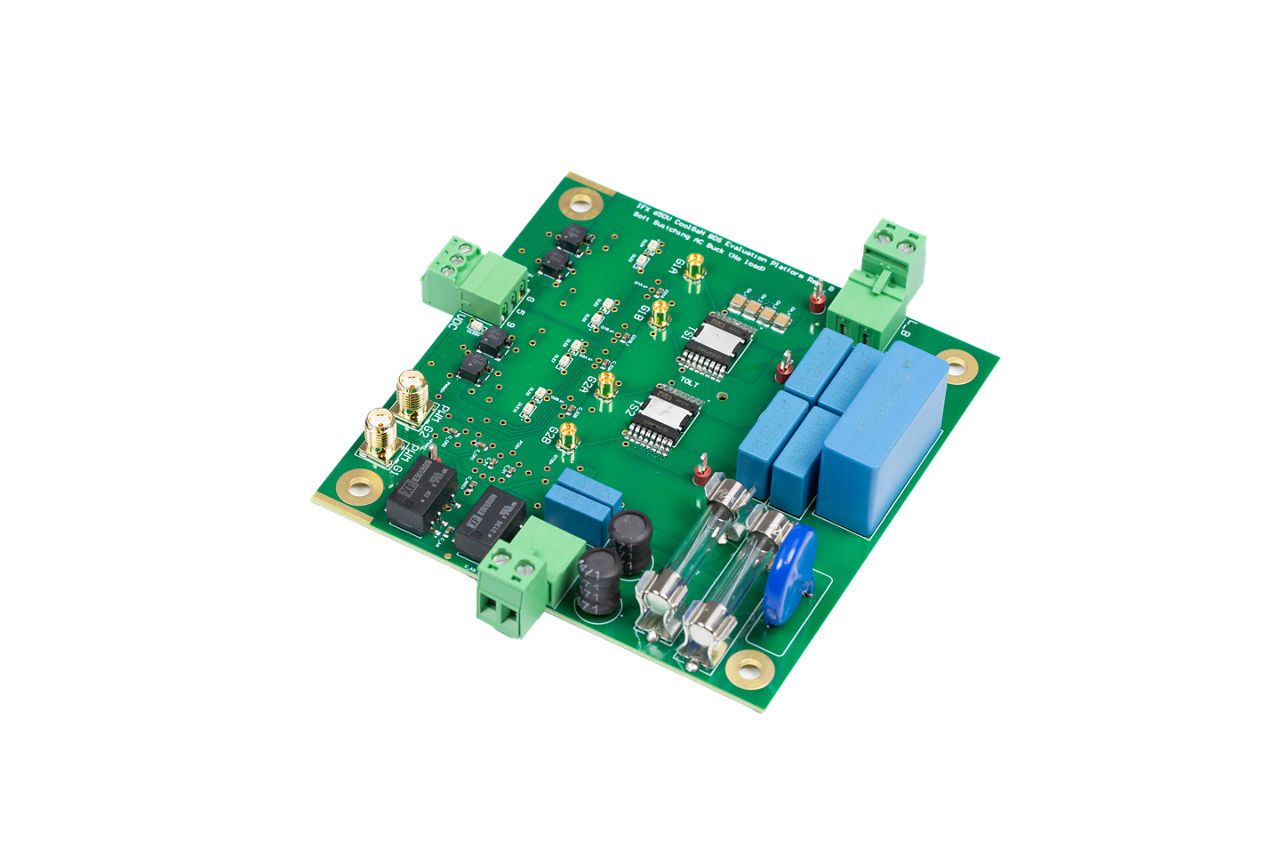

Evaluation board for CoolGaN™ Bidirectional Switch 650 V G5
User manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DEMO_AC_ZVS_HVBDS
DEMO_AC_ZVS_HVBDS
ea.
User manual


Product details

  • Family
    CoolGaN™
  • Inductance
    20-200 μH
  • Input Voltage range
    90 V to 240 V
  • Switching Frequency range
    100 kHz to 400 kHz

Recommended
OPN
DEMOACZVSHVBDSTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Country of Assembly (CoA)
AT
Country of Diffusion (CoD)
AT
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Country of Assembly (CoA)
AT
Country of Diffusion (CoD)
AT
ea.
in stock
The DEMO_AC_ZVS_HVBDS demonstrates the AC soft-switching capability of Infineon's CoolGaN™ Bidirectional Switch (BDS) 650 V G5 in typical 50/60 Hz AC grid conditions with symmetrical triangular current mode (TCM) operations.

Features

  • Optimized for soft switching
  • Loadless setup for test conditions
  • Simple open loop control

Benefits

  • Commutation driver layout examples
  • No output required, continuous operation
  • Wide current and voltage operating range

List of Components:

  • IGLT65R055B2
  • 1EDN7512G
  • 1EDB7275F
  • BAT165
  • IPN70R1K5CE

Bill of Material
