DEMO_850W_12VDC_230VAC

Reference design/demo board, 850 W 12 V output 230 V AC input, low frequency transformer based SOHO UPS design
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DEMO_850W_12VDC_230VAC
DEMO_850W_12VDC_230VAC
Application Notes

Product details

  • Board Type
    Demo Board
  • Configuration
    IRFS7440, 2EDL8114G, XMC1301-T016F0032 AB
  • Dimensions
    335mm×93mm×85mm
  • Family
    StrongIRFET™
  • Input Type
    DC
  • Output Current max
    3.5 A
  • Output Voltage max
    240 V
  • Pout max
    850 W
  • Product Name
    DEMO_850W_12VDC_230VAC
  • Qualification
    Standard
  • Supply Voltage
    9 V to 15 V
  • Target Application
    UPS
  • Topology
    Isolated, Full Bridge, Bi-Directional Conversion
Recommended
OPN
DEMO850W12VDC230VACTOBO1
Product Status active
Infineon Package N/A
Package Name N/A
Packing Size N/A
Packing Type N/A
Moisture Level NA
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 0
Packing Type
Moisture Level NA
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant

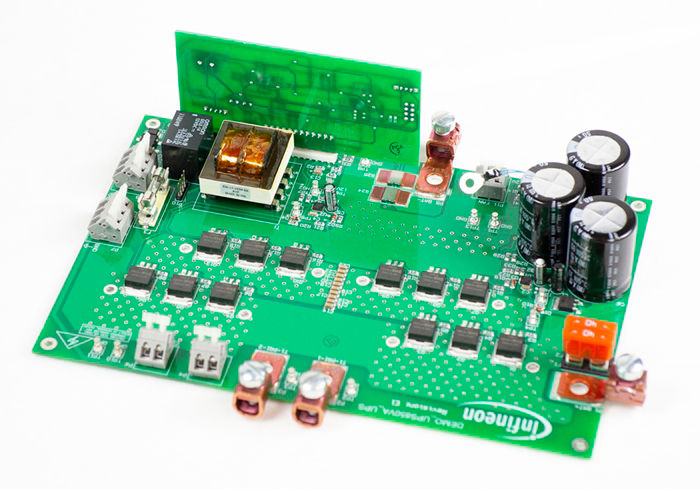

The DEMO_850W_12VDC_230VAC is a UPS solution based on a bidirectional full bridge topology, featuring XMC1300 series microcontroller and 2EDL8114 controller IC. It offers AC power failure detection, sine wave output voltage generation, battery fault protection, and fast/slow battery charging modes. It's designed for 12V lead-acid batteries with overload protection and thermal shutdown.

Features

  • SMD MOSFET heat sinking concept
  • Infineon 2EDL half-bridge gate drivers
  • Infineon XMC™ microcontroller

Benefits

  • Demonstrates a practical UPS design
  • Full system solution
  • Reduced time to market for UPS design

Applications

Bill of Material
