DEMO-3AR2280JG

Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DEMO-3AR2280JG
DEMO-3AR2280JG
Application Notes

Product details

  • Board Type
    Demo Board
  • Family
    CoolSET™
  • Input Type
    AC
  • Output Current
    1.5 A
  • Output Voltage
    12 V
  • Pout
    18 W
  • Qualification
    Industrial
  • Sub Application
    Offline SMPS
  • Supply Voltage
    85 V to 282 V
  • Target Application
    Power Supplies
  • Topology
    Flyback
OPN
DEMO3AR2280JGTOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

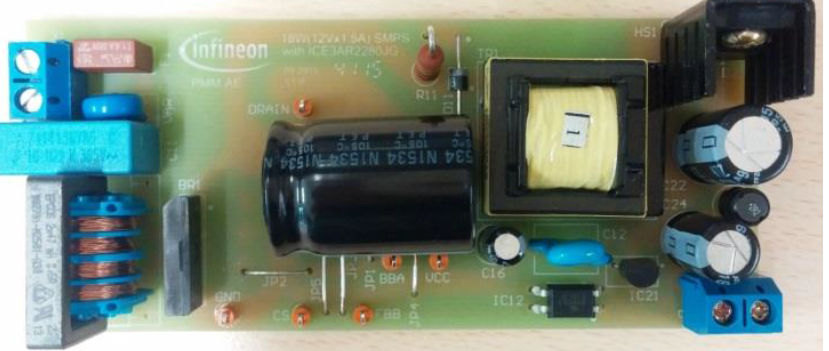

This is the universal input 18 W 12 V off-line flyback converter power supply using Infineon CoolSET™ F3R80 family, ICE3AR 2280JG (DSO16/12). The converter is operated in Discontinuous Conduction Mode, 100 kHz fixed frequency, low standby power, brownout and various mode of protections for a high reliable system. This demo board is designed to evaluate the performance of ICE3AR2280JG in ease of use.
