D-BTS7120-2EPG-1

NEW
Daughterboard, a motherboard is needed: with µC (Smart Power Switches Motherboard) or without µC (Smart Power Switch Motherboard Lite)
User manual
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

D-BTS7120-2EPG-1
D-BTS7120-2EPG-1
User manual

Product details

  • Board Type
    Evaluation Board
  • Family
    High-side switches, PROFET™+2 12V
  • Input Type
    DC
  • Qualification
    DC, Automotive
  • Sub Application
    Body Control, Lighting
  • Supply Voltage range
    -16 V to 35 V
  • Target Application
    Automotive
  • Topology
    High-side switch
  • Undervoltage Recovery Delay
    No
Recommended
OPN
DBTS71202EPG1TOBO1
Product Status active and preferred
Infineon Package LG-MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package LG-MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

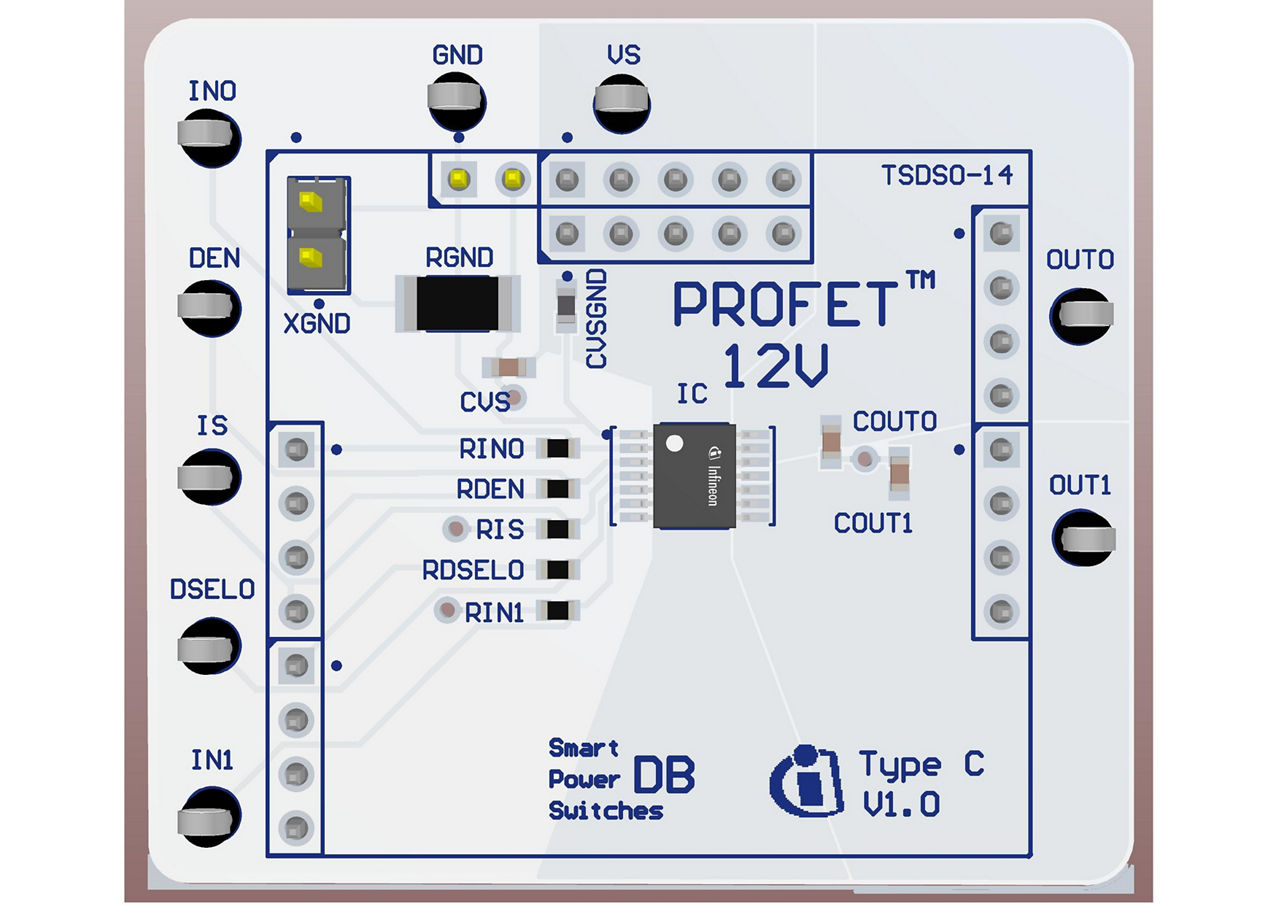

This daughterboard comes with 1 high-side switch of BTS7120-2EPG and is compatible with the PROFET™+2 12V motherboard. The purpose of this board is to provide a quick pick and place solution for costumers' lab evaluations. The motherboard in combination with the daugtherboard is capable to drive typcial automotive loads.

Features

  • RDS(ON): 1.2-200 mΩ in smaller TSDSO-14
  • Current tripping & overvoltage protect
  • Diagnosis: load current sense output
  • Pin2pin PROFET™+2 family compatibility
  • Miniaturization / Shrink of the PCB Area

    Benefits

    • 50% reduced current consumption
    • Simplified cost efficient ground network
    • Current sense accuracy (kILIS) ≤ 5%
    • Benchmark cranking voltage capability
    • Smaller package size for area savings
    • Low output leakage current ≤ 0.5 μA
