CYW9RPIWIFIBT-EVK

CYW9RPIWIFIBT-EVK Wi-Fi & Bluetooth® Evaluation Kit with Raspberry Pi CM4 Host
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYW9RPIWIFIBT-EVK
CYW9RPIWIFIBT-EVK
User Manual

Product details

  • Board Type
    Evaluation Board
  • Connectivity
    Wi-Fi/Bluetooth
  • Family
    Wi-Fi 6/6E (802.11ax)
  • Features
    CYW55573 based M.2 E-Key radio module(Murata 2EA), 4x USB Type-A ports to connect peripherals, Raspberry Pi CM4 host, HDMI, microSD, audio jack, tri-band dipole antennas
  • Input Type
    USB Type-C for Power
  • Target Application
    General IoT
Recommended
OPN
CYW9RPIWIFIBTEVKTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

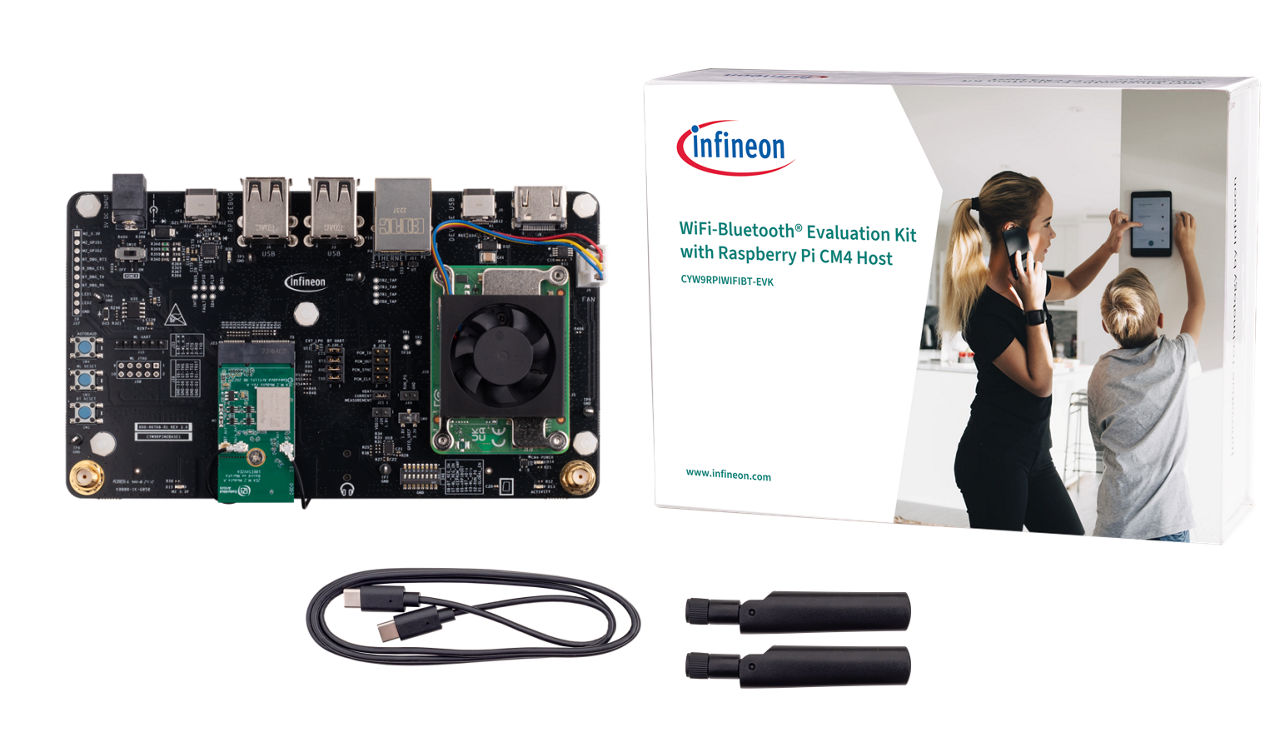

The Infineon AIROC™ Wi-Fi and Bluetooth® combo Linux development Kit (CYW9RPIWIFIBT-EVK) enables the evaluation, prototyping, and development of a wide array of Wi-Fi and Bluetooth applications. Additionally, the installed CYW55573 M.2 card can be replaced with any other Infineon based M.2 card for further evaluation capabilities.

Features

  • Wi-Fi 6/6E
  • Bluetooth 5.3
  • Pre-loaded Linux image
  • Dipole antenna
  • Embedded Artists M.2 with Murata 2EA module
  • Power measurement capabilities
  • Audio playback capabilities
  • Remote access via UART terminal

Benefits

  • Evaluation made easy for Wi-Fi 6/6E
  • Prototyping and development
  • Familiar Linux development environment
  • AIROCTM Bluetooth stack

Applications
