Active and preferred
RoHS Compliant

CYBT-243053-EVAL

AIROC™ CYBT-243053-02 Bluetooth® & Bluetooth® LE Module Evaluation Kit (CYBT-243053-EVAL)
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYBT-243053-EVAL
CYBT-243053-EVAL
ea.
User Manual

Product details

  • Bluetooth Standard
    BT/BLE 5.4
  • Board Type
    Evaluation Kit
  • CapSense
    No
  • Connectivity
    Bluetooth® Dual-Mode
  • Core
    ARM Cortex-M4
  • External memory
    None
  • Family
    AIROC™ CYW20820 Bluetooth® & Bluetooth® LE system on chip
  • GPIOs/Shield Compatibility
    Arduino Uno
  • Hardware Compatibility
    Arduino Uno
  • Input Type
    DC
  • Programmer/Debugger
    USB-UART
  • Programming/Bridging
    USB-UART
  • Qualification
    Industrial, Consumer
  • Sensors
    None
  • Software Ecosystem
    ModusToolbox™
  • Software Support
    ModusToolbox,EZ-Serial
  • Target Application
    Home automation, Lighting, Bluetooth® connected IoT application, Bluetooth® Mesh, sensors
  • WiFi Standard
    N/A
Recommended
OPN
CYBT-243053-EVAL
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

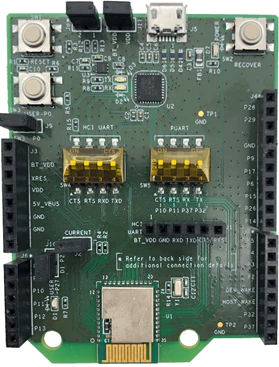

The Infineon AIROC™ CYBT-243053-02 Bluetooth® & Bluetooth® Core 5.4 Module Evaluation Kit (CYBT-243053-EVAL) enables evaluation, prototyping, and development of a wide array of IoT applications using the AIROC™ CYBT-243053-02 module, which is based on CYW20820 system on a chip. This kit includes an Infineon in-house AIROC™ Bluetooth® Module hosting the AIROC™ CYW20820 that is globally certified and has PCB antenna integrated

Features

  • Generic Access Profile (GAP)
  • Generic Attribute Profile (GATT)
  • Security Manager Protocol (SMP)
  • Radio Frequency Communication protocol
  • Service Discovery Protocol (SDP)
  • BLE Mesh protocol
  • Integrated serial flash
  • Input/output interfaces
  • Light sensor
  • Thermistor
  • LEDs
  • External headers for debugging

Benefits

  • Support fast time-to-market
  • Support a wide spectrum of applications

Applications
