Active and preferred
RoHS Compliant

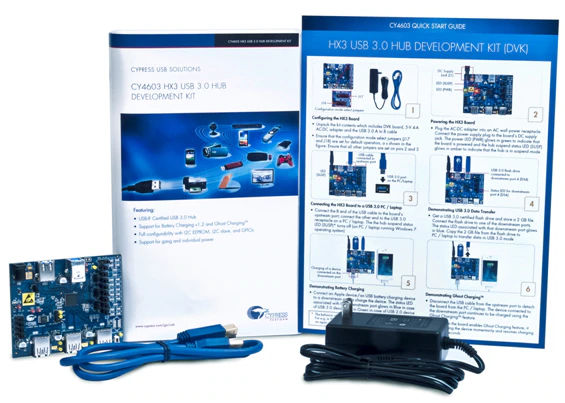

CY4603

EZ-USB™ HX3 USB 3.0 hub development board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CY4603
CY4603
ea.

Product details

  • Board Type
    Evaluation Board
  • Family
    Universal Serial Bus (USB) – Power Delivery Controller
  • Input Type
    DC
  • Qualification
    Industrial, Consumer
  • Target Application
    Adapters and chargers, Home entertainment, Mobile devices
Recommended
OPN
CY4603
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The CY4603 Development Kit is designed for evaluating and developing solutions with the USB-IF certified CYUSB331x family of HX3 USB 3.0 hub controllers. It features integrated components for demonstrating the application of HX3 for a 4-port USB 3.0 Hub. Additionally, the kit includes the Blaster Plus utility, a GUI-based Infineon software tool for configuring HX3 parameters, and showcases the GPIO configurability options available in HX3.

Features

  • USB 5Gbps hub development kit
  • Battery charging v1.2
  • Configurable GPIOs
  • I2C EEPROM or I2C mode configuration

Benefits

  • USB 3.0 Hub development kit
  • USB-IF certified CYUSB331x family
  • 4-port USB 3.0 Hub
  • Compliant to USB PD specification
  • PCB design and layout files

Applications
