CY4521

EZ-PD™ CCG2 evaluation board
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CY4521
CY4521
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    Universal Serial Bus (USB) – Power Delivery Controller
  • Input Type
    DC
  • Qualification
    Industrial, Consumer
  • Target Application
    Adapters and chargers, Home entertainment, Mobile devices
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

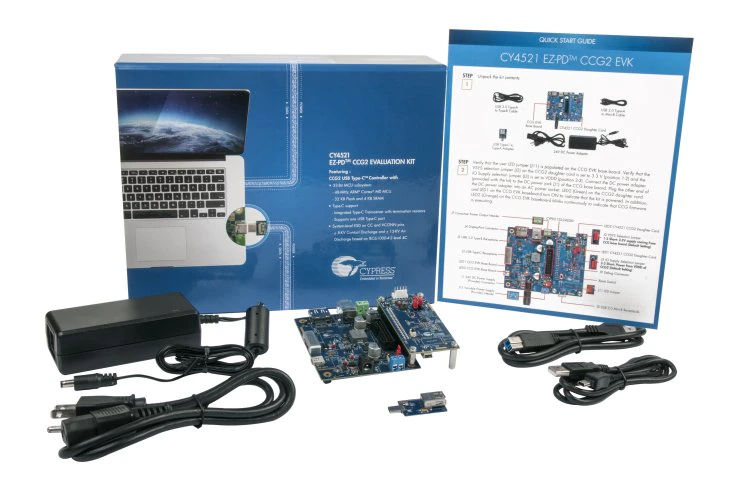

CY4521 is an evaluation kit (EVK) based on EZ-PD™ CCG2 product family (CYPD2xxx) of Infineon's USB Type-C controller with power delivery. This EVK is primarily intended to be an evaluation vehicle for USB Type-C systems specifically for downstream facing port (DFP) and dual role port (DRP) applications.

Features

  • Supports USB Type-C and USB-PD
  • 48-MHz ARM® Cortex®-M0
  • 32 KB flash with 4 KB SRAM
  • Integrated transceiver with resistors
  • Wide operating range: 2.7 V to 5.5 V
  • System level ESD on CC pins +/
  • 8kV

Benefits

  • Simple USB-C PD controller solution
  • Integrated USB-C PD and microcontroller
  • GUI based configuration utility
  • Compliant to USB PD specification
  • Extensive interop tested solution

Applications
