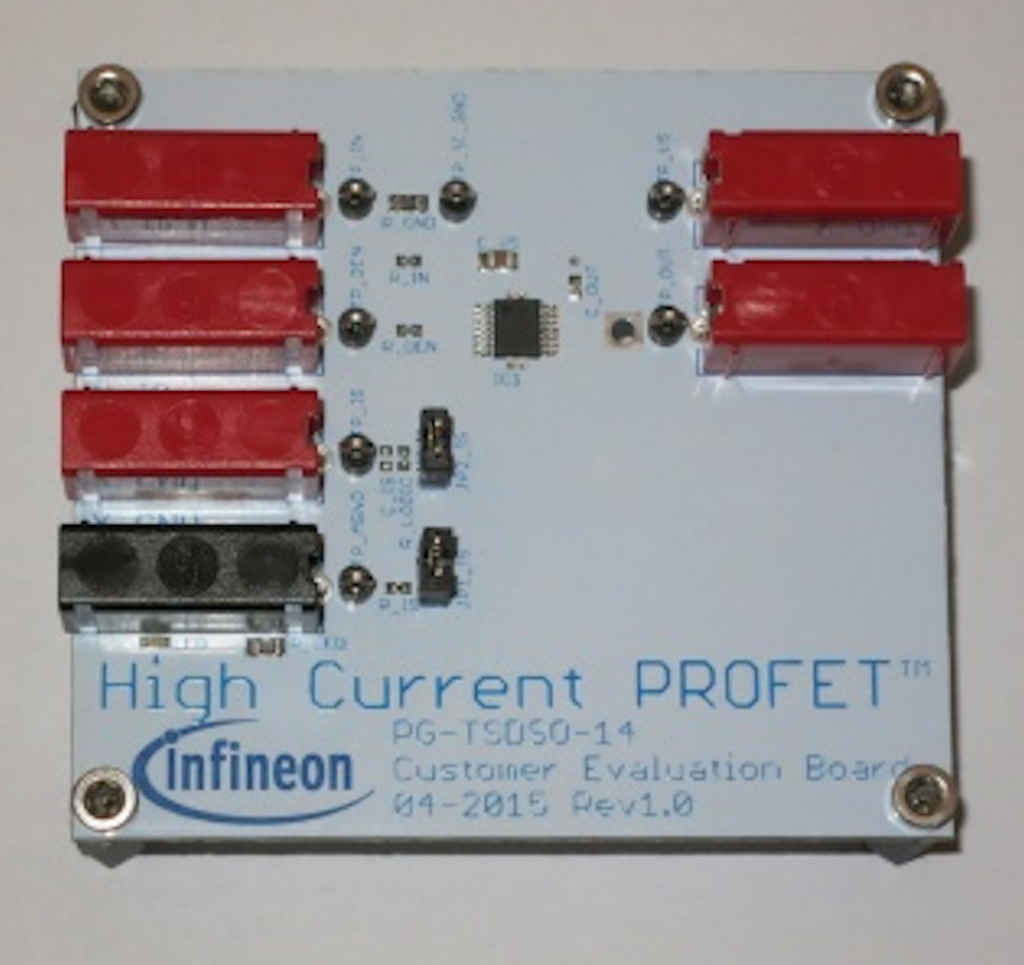

BTS7004-1EPP BOARD

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTS7004-1EPP BOARD
BTS7004-1EPP BOARD

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    70 mm x 70 mm
  • Family
    High-side switches, PROFET™ +2 12V
  • Input Type
    DC
  • Interfaces
    N/A
  • Qualification
    Automotive
  • Sub Application
    Body control module, Lighting, Heating, Glow plug controller, Power Distribution Center
  • Supply Voltage
    -16 V to 35 V
  • Target Application
    Automotive
  • Topology
    High-side switch
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
The BTS7004-1EPP high side switch with 15A nominal current provides a quick start for lab evaluation of Infineon’s automotive qualified PROFET™+2 12V family. These devices drive resistive, inductive, and capacitive loads and are optimized for design flexibility and current sense accuracy. Suitable for driving up to 20A loads, they replace electromechanical relays, fuses, and discrete circuits.

Features

  • Lowest RDS(ON) on small footprint 2mΩ – 8mΩ in TSDSO-14
  • Protection concept with current trip and intelligent latch
  • Diagnosis with high current sense accuracy up to current trip level
  • Optimized for design flexibility across the family by pin to pin and external components compatibility
  • Miniaturization / Shrink of the PCB Area

Benefits

  • 50% reduced internal operating current consumption
  • Simplified & cost efficient ground network
  • Current sense accuracy (kILIS) ≤ 5% @ nominal load current
  • Benchmark cranking voltage capability able to work down to 3.1 V
  • Smaller package size for area savings
  • Very low output leakage current (≤ 0.5 μA up to 85°C)

Applications
