BTS7002-1EPP BOARD
BTS7002-1EPP BOARD

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    70 mm x 70 mm
  • Family
    High-side switches, PROFET™ +2 12V
  • Input Type
    DC
  • Interfaces
    N/A
  • Sub Application
    Body control module, Lighting, Heating, Glow plug controller, Power Distribution Center
  • Supply Voltage
    -16 V to 35 V
  • Target Application
    Automotive
  • Topology
    High-side switch
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

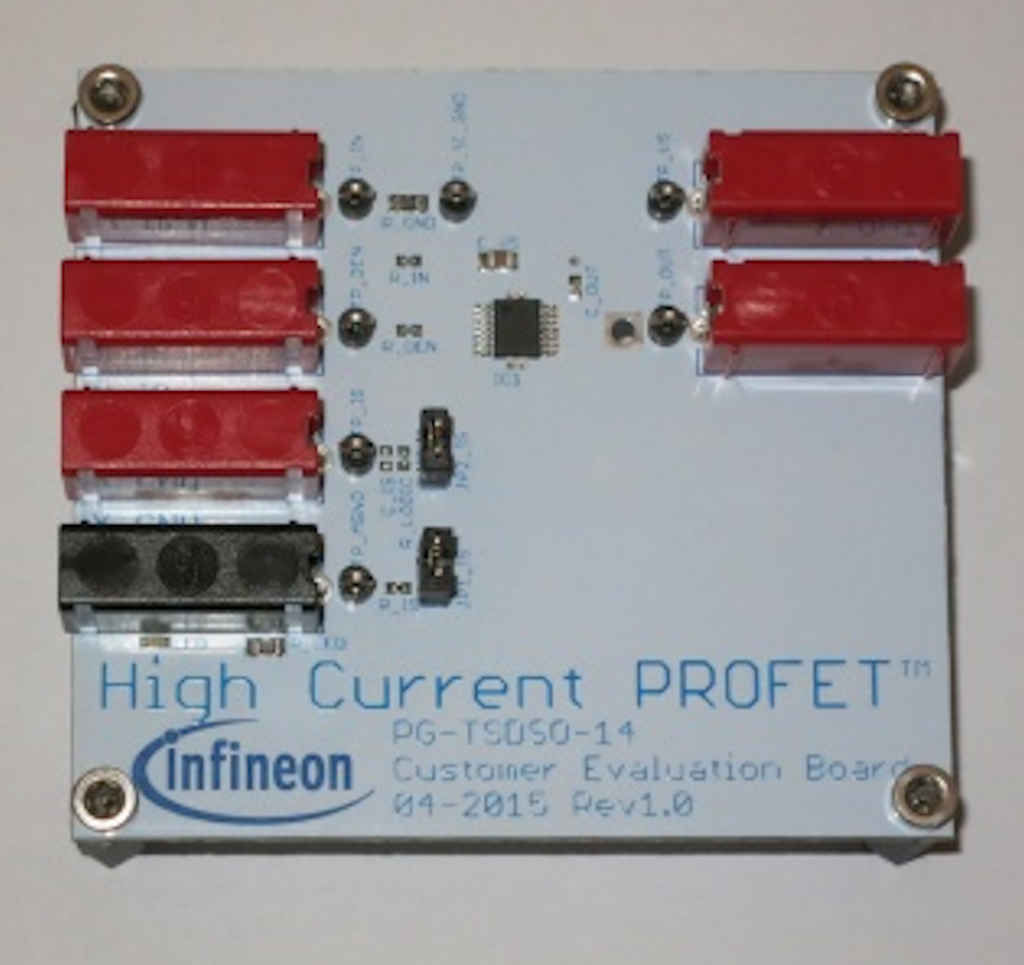

The Evaluation Board features the BTS7002-1EPP high side switch with 21A nominal current, offering a quick start for lab evaluation of Infineon’s automotive qualified PROFET™+2 12V family. These devices can drive resistive, inductive, and capacitive loads, offering low RDS(ON) on a small footprint and high current sense accuracy.

Features

  • Lowest RDS(ON) on small footprint 2mΩ – 8mΩ in TSDSO-14
  • Protection concept with current trip and intelligent latch
  • Diagnosis with high current sense accuracy up to current trip level
  • Optimized for design flexibility across the family by pin to pin and external components compatibility
  • Miniaturization / Shrink of the PCB Area

Benefits

  • 50% reduced internal operating current consumption
  • Simplified & cost efficient ground network
  • Current sense accuracy (kILIS) ≤ 5% @ nominal load current
  • Benchmark cranking voltage capability able to work down to 3.1 V
  • Smaller package size for area savings
  • Very low output leakage current (≤ 0.5 μA up to 85°C)
