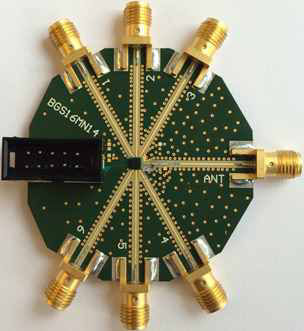

BGS16MN14 BOARD

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGS16MN14 BOARD
BGS16MN14 BOARD

Product details

OPN
BGS16MN14BOARDTOBO1
Product Status on request
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
BGS16MN14 is a Single Pole Six Throw (SP6T) Diversity Switch optimized for wireless applications up to 2.7 GHz. It is a perfect solution for multi-mode handsets based on EDGE, WCDMA and LTE. This device comes in a miniature TSNP package and comprises of a high power CMOS SP6T switch with integrated MIPI RFFE interface.Produt: BGS16MN14

Features

  • Suitable for multi-mode WCDMA / LTE diversity applications
  • Ultra-low insertion loss and harmonics generation
  • 6 high-linearity, interchangeable RX ports
  • 0.1 to 2.7 GHz coverage
  • High port-to-port-isolation
  • Direct to battery supply enabled by large supply voltage range
    from 2.5 V to 5.5 V
  • Integrated MIPI RFFE interface supporting 1.2 and 1.8 V bus
    voltage
  • Software programmable MIPI RFFE USID
  • Small form factor 2.0 mm x 2.0 mm

Applications
