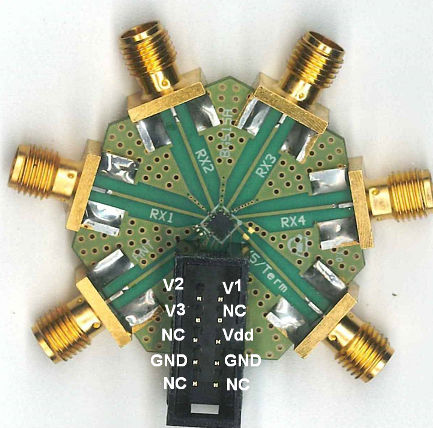

BGS14A BOARD
BGS14A BOARD

Product details

OPN
BGS14ABOARDTOBO1
Product Status on request
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The BGS14AN16 RF-switch is designed for WCDMA diversity applications, offering low insertion loss, high port-to-port isolation, and low harmonic generation. It features an integrated LDO for direct battery connection, a power down mode, and on-chip control logic supporting logic levels from 1.5V to Vdd. Suitable for RF & Protection applications in Mobile Devices, it provides high ESD robustness and requires no external decoupling components.

Features

  • 4 high-linearity Rx paths with power handling capability of up to 30 dBm
  • All Ports fully symmetrical
  • No external decoupling components required
  • High ESD robustness
  • Low harmonic generation
  • Low insertion loss
  • High port-to-port-isolation
  • 0.1 to 3 GHz coverage
  • Direct connect to battery
  • Power down mode
  • On-chip control logic supporting logic levels from 1.5 V to Vdd
