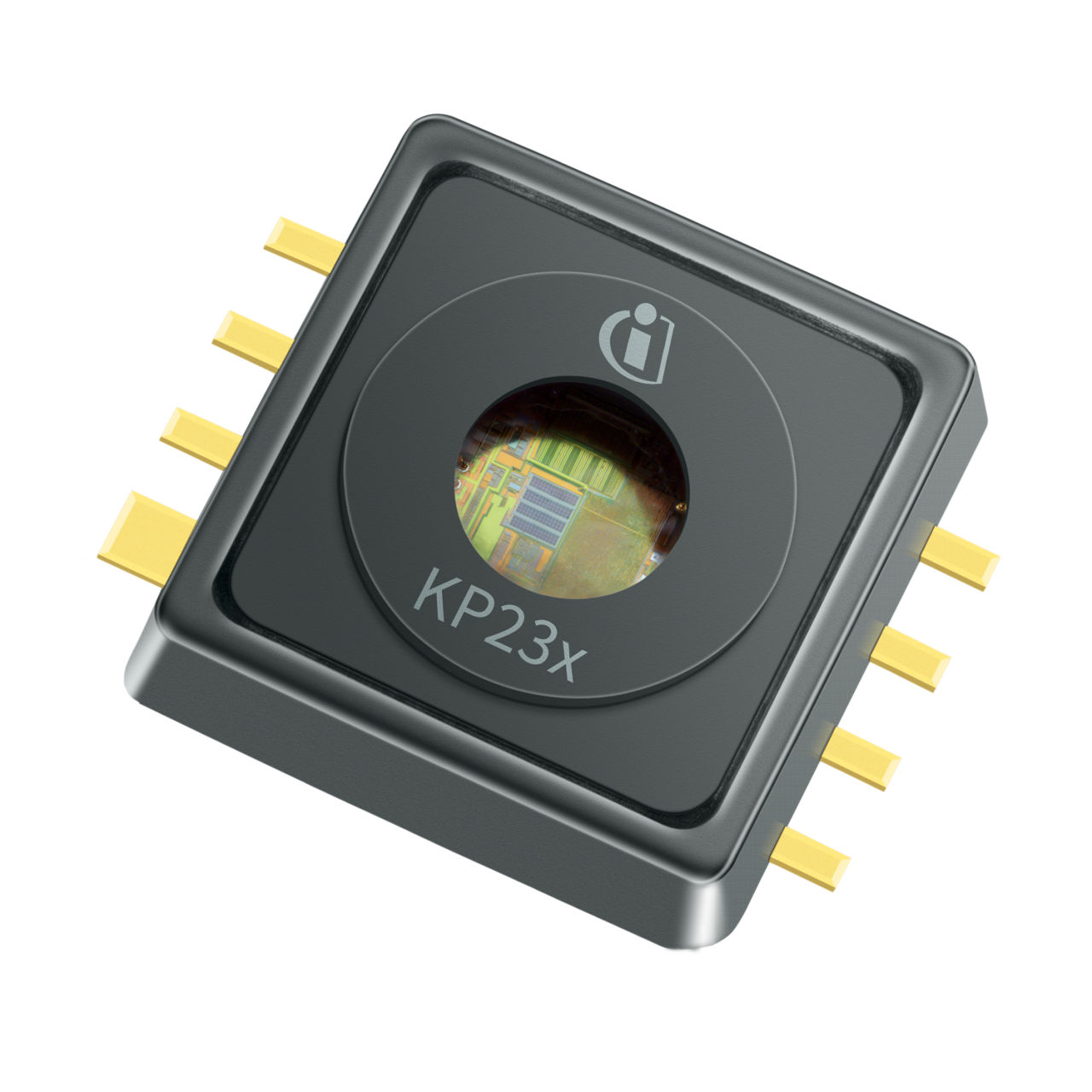

KP236

XENSIV™ - KP236 analog barometric air pressure sensor based on capacitive principle
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KP236
KP236
ea.
Data Sheet

Product details

  • Accuracy
    +/-1.0 kPa
  • Interfaces
    Analog
  • Planned to be available until at least
    2036
  • Pressure Range
    40 kPa to 115 kPa
  • Supply Voltage
    -0.3 V to 6.5 V
  • Temperature
    -40 °C to 125 °C
Recommended
OPN
KP236XTMA1
Product Status active and preferred
Infineon Package
PG-DSOF-8
Package Name N/A
Packing Size 1500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSOF-8
Package Name -
Packing Size 1500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
KP236: Miniaturized analog BAP pressure sensor. Capacitive principle, monolithic integrated signal conditioning in BiCMOS technology. Converts 40-115 kPa pressure range into 0.5-4.5 V voltage range. Green SMD housing. Ideal for measuring barometric pressure in automotive, industrial & consumer applications. High accuracy & sensitivity.

Features

  • High precision pressure sensing
  • Ratiometric analog output
  • Large temperature range (-40°C to 125°C)
  • Broken wire detection
  • “Green” 8 pin SMD housing
  • Automotive qualified
