XDPL8220

Digital configurable multimode flyback XDP™ control IC for LED drivers ideally suited for smart lighting
Data Sheet
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XDPL8220
XDPL8220
Data Sheet

Product details

  • Comments
    Digital and configurable multimode flyback controller ideal for Smart Lighting featuring flicker free control and low standby power
  • Output characteristics
    Constant current+Constant voltage+limited power
  • Package
    PG-DSO-16
  • Switching Frequency
    20 kHz to 180 kHz
  • Topology
    PFC + Flyback
  • Type
    Digital Controller
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

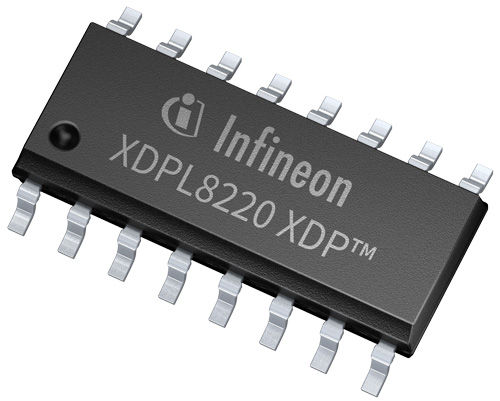

The digital control IC XDPL8220 connects a quasi-resonant PFC with a quasi-resonant flyback digital controller with primary side regulation. The multi-control operation for constant voltage, constant current and limited power enables to build highly, versatile LED drivers (e.g. window LED driver). While the XDP™ digital power control IC XDPL8220 enables a variety of systems, the main application field is advanced dual LED drivers for stage indoor and outdoor. The device is fine tunable to the needs of the target application. A comprehensive set of parameter for adjustment of operating constraints provides high flexibility.

Features

  • Constant current, constant voltage, limited power with primary-side regulation
  • Supports AC and DC input
  • Nominal input voltage range 100VAC – 277VAC or 127VDC – 430VDC
  • Reference board efficiency > 90%
  • Stand-by power <100mW
  • Power factor >0.9 over wide load range
  • THD <15% compliant with IEC 61000-3-2 class C over wide load range
  • Digital control selects automatically best mode of operation, depending on actual requirements
  • QRM (quasi-resonant mode)
  • DCM (discontinuous conduction mode)
  • Dimming with PWM input and Analog output current modulation
  • Temperature guard with adaptive thermal management with internal and/or external sensor
  • Digital parameters
  • Relevant error conditions are monitored and protected
  • Undervoltage
  • Overvoltage
  • Open load
  • Output shorted

Benefits

  • The XDPL8220 enables to implement high performance and innovative advanced LED driver with small effort
  • Reduced BoM minimizes system cost and increases flexibility
  • High reliability features improve lifetime of the driver
  • Fast design cycle reduces time to market and efforts for value products
  • Supply chain efficiency optimizes stock keeping and enables high flexibility
