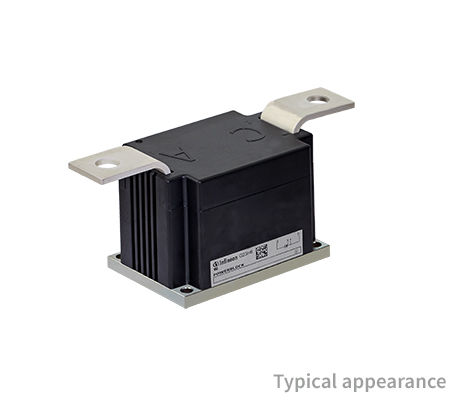

TZ800N14KOF

70 mm Single Thyristor Module with 1400 V in pressure contact technology
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TZ800N14KOF
TZ800N14KOF
Data Sheet

Product details

  • (diT/dt)cr [A/µs] (@DIN IEC 747- 6)
    200
  • Configuration
    Single SCR Phase Control
  • Housing
    70 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    800/85
  • IFSM / ITSM [A] (@10ms, Tvj max)
    30000
  • Product Line
    Power Block
  • rT [mΩ] (@Tvj max)
    0.17
  • RthJC [K/W] (@180° el sin)
    0.042
  • Tvj [°C]
    125
  • VDRM / VRRM [V]
    1400
  • VT0 [V] (@Tvj max)
    0.82
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    4500
Recommended
OPN
TZ800N14KOFHPSA3
Product Status active and preferred
Infineon Package BG-PB70AT-1
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package BG-PB70AT-1
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Single Thyristor 70 mm Power Block 1400 V, 800 A module for phase control in pressure contact technology using an isolated copper base plate.

Features

  • Pressure contact technology
  • Industrial standard package
  • Electrically insulated baseplate
  • Short on fail
  • Highest robustness
  • High reliability
