Active and preferred
RoHS Compliant
Lead-free

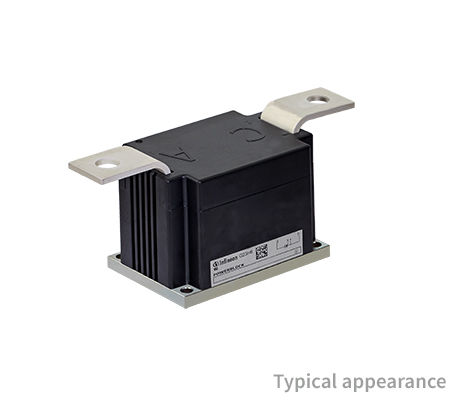

TZ520N22KOF

50 mm Single Thyristor Module with 2200 V in pressure contact technology
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TZ520N22KOF
TZ520N22KOF
Data Sheet

Product details

Recommended
OPN
TZ520N22KOFXPSA1
Product Status active and preferred
Infineon Package BG-PB501EC-1
Package Name N/A
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package BG-PB501EC-1
Package Name -
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Single Thyristor 50 mm Power Block 2200 V, 520 A module for phase control in pressure contact technology using an isolated copper base plate.

Features

  • Industrial standard package
  • Electrically insulated baseplate
  • Pressure contact technology
  • Short on fail

Benefits

  • Highest robustness

Applications

Motor control
