Active and preferred
RoHS Compliant
Lead-free

TZ400N26KOF

50 mm Single Thyristor Module with 2600 V in pressure contact technology

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TZ400N26KOF
TZ400N26KOF

Product details

  • (diT/dt)cr [A/µs] (@DIN IEC 747- 6)
    150
  • Configuration
    Single SCR Phase Control
  • Housing
    50 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    400/85
  • IFSM / ITSM [A] (@10ms, Tvj max)
    11000
  • Product Line
    Power Block
  • rT [mΩ] (@Tvj max)
    0.5
  • RthJC [K/W] (@180° el sin)
    0.065
  • Tvj [°C]
    125
  • VDRM / VRRM [V]
    2600
  • VT0 [V] (@Tvj max)
    1
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    605
OPN
TZ400N26KOFHPSA1
Product Status active and preferred
Infineon Package
Package Name N/A
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
Package Name -
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

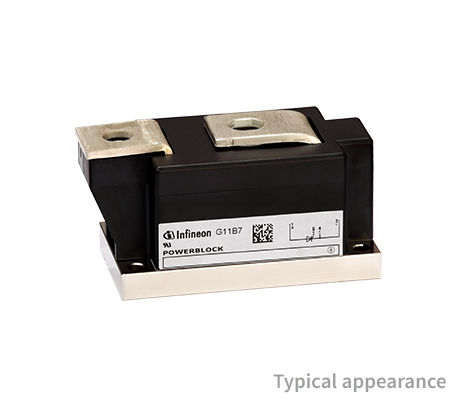

Single Thyristor 50 mm Power Block 2600 V, 400 A module for phase control in pressure contact technology using an isolated copper base plate.

Features

  • Pressure contact technology
  • Industrial standard package
  • Electrically insulated baseplate
  • Short on fail
  • Highest robustness

Applications
