TT92N16KOF

20 mm Thyristor/Thyristor module with 1600 V in pressure contact technology
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TT92N16KOF
TT92N16KOF
Data Sheet

Product details

  • (diT/dt)cr [A/µs] (@DIN IEC 747- 6)
    150
  • Configuration
    SCR / SCR Phase Control
  • Housing
    20 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    92/85
  • IFSM / ITSM [A] (@10ms, Tvj max)
    1800
  • Product Line
    Power Block
  • rT [mΩ] (@Tvj max)
    2.43
  • RthJC [K/W] (@180° el sin)
    0.37
  • Tvj [°C]
    140
  • VDRM / VRRM [V]
    1600
  • VT0 [V] (@Tvj max)
    0.85
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    16.2
Recommended
OPN
TT92N16KOFHPSA2 TT92N16KOFHPSA1
Product Status active and preferred discontinued
Infineon Package BG-PB20-1 BG-PB20-1
Package Name N/A N/A
Packing Size 15 15
Packing Type TRAY TRAY
Moisture Level NA N/A
Moisture Packing NON DRY NON DRY
Lead-free Yes Yes
Halogen Free No No
RoHS Compliant Yes Yes
Infineon stock last updated:

Product Status
Active
Infineon Package BG-PB20-1
Package Name -
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status discontinued
Infineon Package BG-PB20-1
Package Name -
Packing Size 15
Packing Type TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

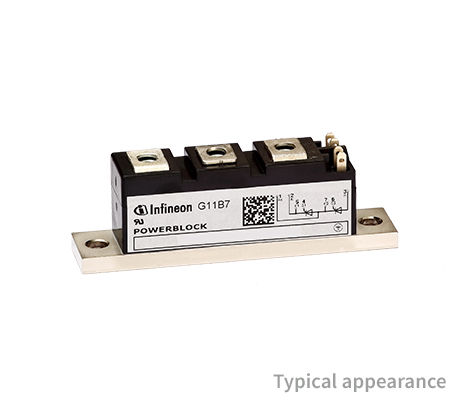

Thyristor/Thyristor 20 mm Power Block 1600 V, 92 A module for phase control in pressure contact technology using an isolated copper base plate.

Features

  • Pressure contact technology
  • Industrial standard package
  • Electrically insulated baseplate
  • Short on fail
  • Highest robustness and reliability
