TT162N14KOF

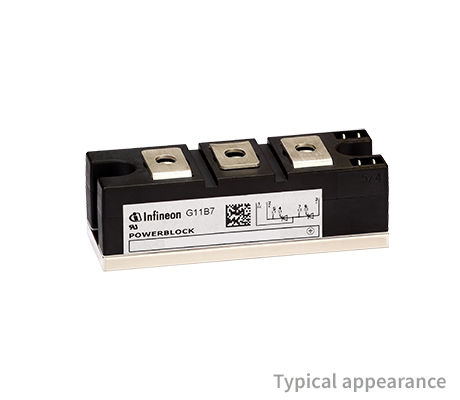

34 mm Thyristor/Thyristor Module with 1400 V in pressure contact technology
Data Sheet
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TT162N14KOF
TT162N14KOF
ea.
Data Sheet

Product details

  • (diT/dt)cr [A/µs] (@DIN IEC 747- 6)
    150
  • Configuration
    SCR / SCR Phase Control
  • Housing
    34 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    162/85
  • IFSM / ITSM [A] (@10ms, Tvj max)
    4400
  • Product Line
    Power Block
  • rT [mΩ] (@Tvj max)
    0.95
  • RthJC [K/W] (@180° el sin)
    0.2
  • Tvj [°C]
    125
  • VDRM / VRRM [V]
    1400
  • VT0 [V] (@Tvj max)
    0.85
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    97
Recommended
OPN
TT162N14KOFHPSA2 TT162N14KOFHPSA1
Product Status active and preferred discontinued
Infineon Package BG-PB34AT-1 BG-PB34-1
Package Name N/A N/A
Packing Size 8 8
Packing Type TRAY TRAY
Moisture Level N/A NA
Moisture Packing NON DRY NON DRY
Lead-free Yes Yes
Halogen Free No No
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package BG-PB34AT-1
Package Name -
Packing Size 8
Packing Type TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status discontinued
Infineon Package BG-PB34-1
Package Name -
Packing Size 8
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Thristor/Thyristor 34 mm Power Block 1400 V, 162 A module for phase control in pressure contact technology using an isolated copper base plate.

Features

  • Pressure contact technology
  • Industrial standard package
  • Electrically insulated baseplate
  • Short on fail
  • Highest robustness
