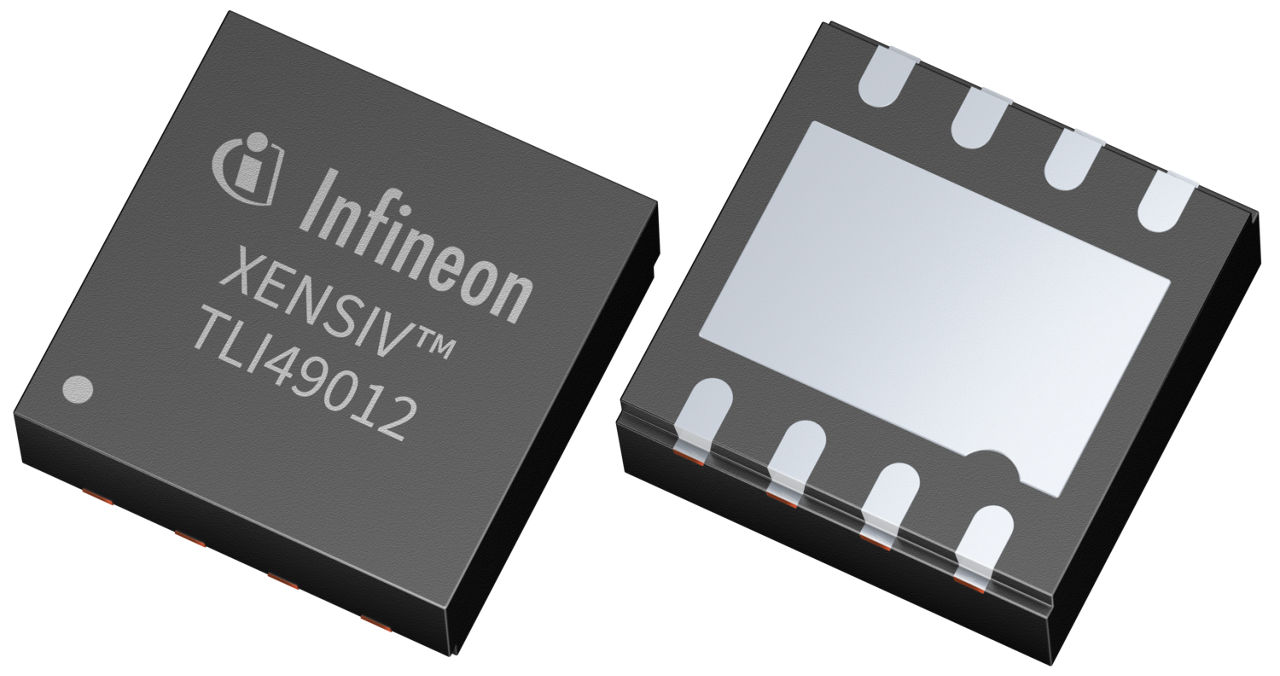

XENSIV™ TLI49012 high-precision digital angle sensor for industrial and consumer applications, with SPI interface
Datasheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLI49012-E0001
TLI49012-E0001
Datasheet

Product details

  • Classification
    JEDEC-JESD47
  • Interfaces
    SPI, ABZ, UVW, PWM
  • Magnetic field range
    20 mT to 120 mT
  • Package
    SMD
  • Supply Voltage range
    3 V to 5.5 V
  • Technology
    Hall
  • Temperature range
    -40 °C to 125 °C
Recommended
OPN
TLI49012E0001XTMA1
Product Status active and preferred
Infineon Package
PG-VSON-8
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VSON-8
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The XENSIV™ TLI49012‑E0001 is a high‑precision digital angle sensor with ultra‑low latency, on‑axis and off‑axis capability, and integrated self‑calibration for continuous accuracy, based on Infineon's proven Vertical Hall technology. This variant features a pre‑configured SPI interface with high resolution and accuracy, making it suitable for a broad range of applications including robotics and industrial and medical drives.

Features

  • High‑precision angle measurement
  • High‑resolution (16‑bit)
  • Ultra‑low latency of 1.5 µs
  • On/off‑axis measurement capability
  • Integrated system self‑calibration
  • Multiple interface options
  • Compact PG‑VSON‑8 package
  • Angle error = 0.1° at field range 30–120 mT

Benefits

  • Flexible integration into motor systems
  • Reliable performance at high speeds
  • Reduced end‑of‑line calibration effort
  • End-of-Shaft and Out-of-Shaft capabilities
  • Versatile design options
  • Sustained accuracy over lifetime
  • Excellent cost‑to‑performance ratio
