TLF35584QVVS2

The TLF35584QVVS2 is a multiple output system supply for safety-relevant applications supplying 3.3V-μC, transceivers, and sensors.
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLF35584QVVS2
TLF35584QVVS2
Data Sheet

Product details

  • Base Product
    TLF35584Qx
  • Classification
    ISO 26262-compliant
  • Comments
    2 tracker, StBy-LDO, ISO 26262-compliant, Safety Features, Automotive Safety PMIC , companion power IC for Aurix™ MCU and peripherals, Buck/Boost PreReg, 3 linear PostRegs (µC, RefLDO, TRX)
  • Compatible Microcontrollers
    AURIX TC2x, TC3x, TRAVEO T1G
  • Enable (=Inhibit)
    yes
  • Family
    OPTIREG™ PMIC
  • Iout max
    200 mA, 600 mA, 150 mA, 10 mA, 1300 mA
  • Iq
    70 µA
  • ISO 26262
    ASIL-D
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    3 V to 40 V
  • Over Voltage Protection
    yes
  • Package
    PG-VQFN-48
  • Planned to be available until at least
    2039
  • Product Group
    PMIC
  • Qualification
    Automotive
  • Regulator Type
    Buck-boost
  • Reset
    yes
  • Target Application
    Safe Computing, Safe Control
  • Tolerance
    2%
  • VQ (multiple)
    5.0 V, 5.8 V
  • Watchdog
    Functional-WD, Window-WD
Recommended
OPN
TLF35584QVVS2XUMA2
Product Status active and preferred
Infineon Package
PG-VQFN-48
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VQFN-48
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The TLF35584 is a versatile device with wide switching frequency range, compact filter components, dedicated references, and a flexible wake-up concept. It offers multiple safety features for ASIL-D compliance and is featured as a power supply and safety monitor on the Hitex ShieldBuddy AURIX™ TC375. For detailed information, please contact your sales representative or the Technical Assistance Center (TAC).

Features

  • μC (main, ADC/reference, StBy)
  • Transceivers
  • Sensors
  • Integration of functional safety (features supporting ASIL-D)
  • UV/OV-monitoring
  • Flexible watchdogs
  • Error-monitoring
  • Safe state controller with 2 outputs
  • BIST

Benefits

  • Efficiency and flexibility
  • Enables ASIL-D on system level
  • Easy ISO26262 Implementation with Full Doc

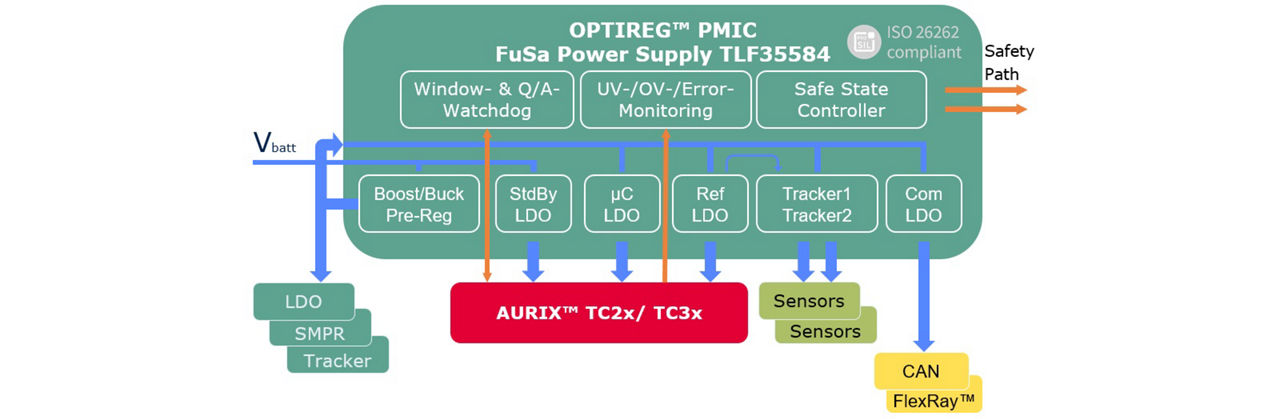

Diagrams
