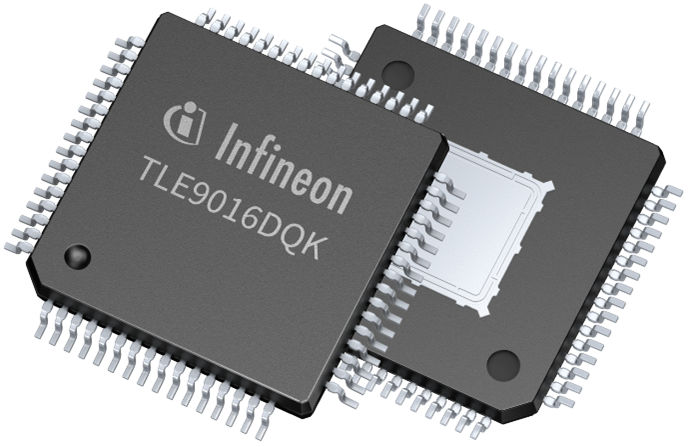

TLE9016DQK

NEW
Li-Ion battery monitoring and balancing IC
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9016DQK
TLE9016DQK

Product details

  • Balancing Current max
    300 mA
  • Cell Voltage max
    10 V
  • Classification
    ASIL D, ISO 26262-compliant
  • Communication Speed
    3 MBit
  • ESD Protection
    4 kV
  • Functional range
    6 V to 90 V
  • ISO UART Interfaces
    2
  • Isolated Communication Interface
    iso UART
  • Non-isolated Communication Interface
    UART
  • Planned to be available until at least
    2038
  • Standby Current
    4 µA
  • Temperature Measurement Channels
    8
  • Tj max
    150 °C
  • Voltage Class
    120 V
  • Voltage Measurement Channels
    16
OPN
TLE9016DQKXUMA1
Product Status coming soon
Infineon Package
PG-LQFP-64
Package Name N/A
Packing Size 1900
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package
PG-LQFP-64
Package Name -
Packing Size 1900
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
This balancing and monitoring IC monitors up to 16 channels in lithium-ion battery packs. The IC's main functions consist of measuring cell voltage, monitoring temperature, balancing cells, and enabling isolated communication with the main battery controller. To ensure safe operation, the IC is equipped with a range of diagnostic tools to account for the safety needs of individuals around the managed battery

Features

  • Monitors up to 16 ch in series
  • 16 bit delta-sigma ADC per cell
  • Simultaneous 300 mA/cell balancing
  • Low-power balancing mode
  • Configurable digital filter
  • Secondary ADC for E2E safety
  • Strong ESD and hotplug performance
  • Iso UART communication interface
  • 8 error-compensated NTC channels
  • Internal automatic safety cycles
  • Compatible with AURIX™ TC36/7/8x CDD
  • ISO26262 ASIL D safety compliant

Benefits

  • Highly accurate voltage measurement
  • Best-in-class application robustness
  • Enables lowest system cost

Applications

Documents

Documents

Design resources

Partner solutions

Developer community
