TLE8104E

END OF LIFE
The TLE8104E is designed for Powertrain applications and it's equipped with a Serial Peripheral Interface (SPI) for control and diagnosis
Data Sheet

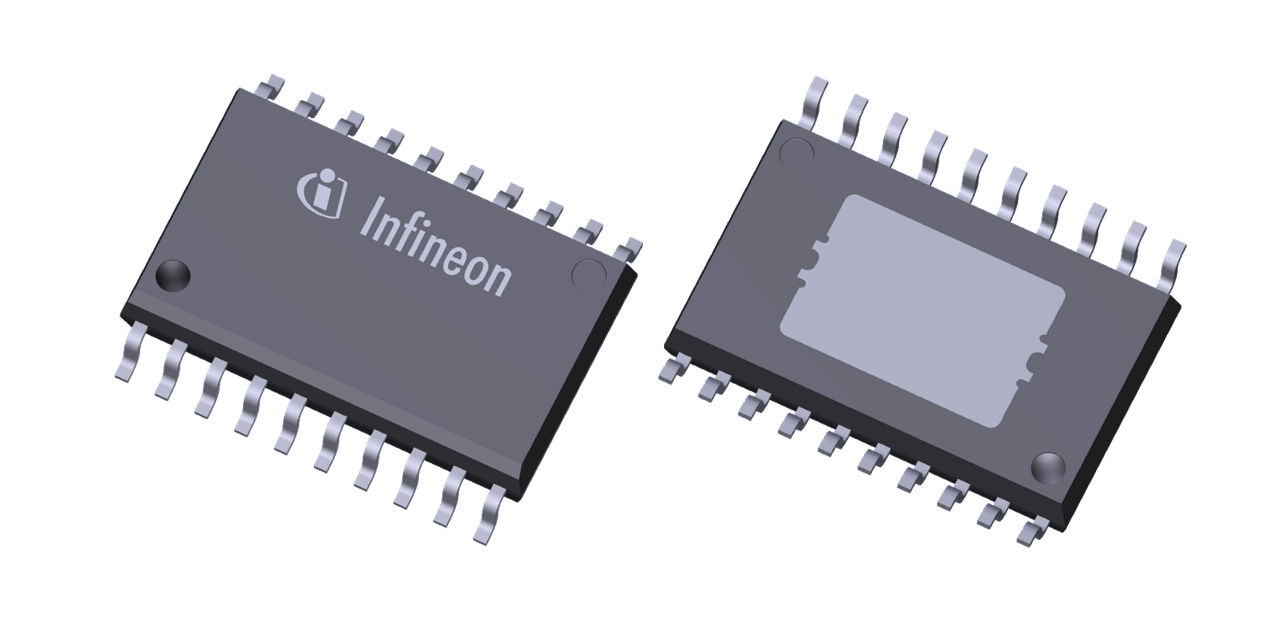

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE8104E
TLE8104E
Data Sheet

Product details

  • Channels
    4
  • Comments
    inductive and resistive loads (e.g. Solenoids, Injectors, Valves, Relays)
  • High Side / Low Side
    0/4
  • ID(lim)(multiple)
    4 x 3.0 A
  • Operating Temperature
    -40 °C to 150 °C
  • Over Current Protection
    Limitation
  • Pin Count
    20 Pins
  • Planned to be available until at least
    n.a
  • RDS (on) (multiple)
    4 x 0.52 Ohm (typ @ 150°C)
  • Thermal Class
    Exposed Pad
  • toff max
    10 µs
  • ton max
    10 µs
  • VDD
    5.0 V
  • VDS(CL)
    45 V to 60 V
OPN
TLE8104EXUMA2
Product Status discontinued
Infineon Package
PG-DSO-20
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PG-DSO-20
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
All channels are protected against over-current/temperature and enhanced with an active clamping circuitry for driving inductive loads. Load status detection is possible over the SPI for: Short to GND (SCG), Open Load (OL), and Short to Battery (SCB). 4 input pins are available for direct PWM control of the switches.

Features

  • 8-bit SPI
  • 4x Direct Input Pins
  • Fault pin
  • Programmable Active-Low/High logic
  • Active Clamping
  • Diagnosis for SCG, OL and SCB
  • Over-Current Protection (I-limit)
  • Over-Temperature Protection
  • IC Over-Temperature Warning
  • Electrostatic Discharge (ESD) Protection
  • Low Quiescent Current Mode
  • Green Product (RoHS compliant)
  • AEC Qualified

Benefits

  • Inductive Load Clamping
  • Small Exposed Pad Package
  • Full Protection
  • Full Diagnosis
  • SPI communication

Applications
