TLE7257SJ

The TLE7257SJ is a transceiver for the Local Interconnect Network (LIN) with integrated wake-up and protection features.
Data Sheet

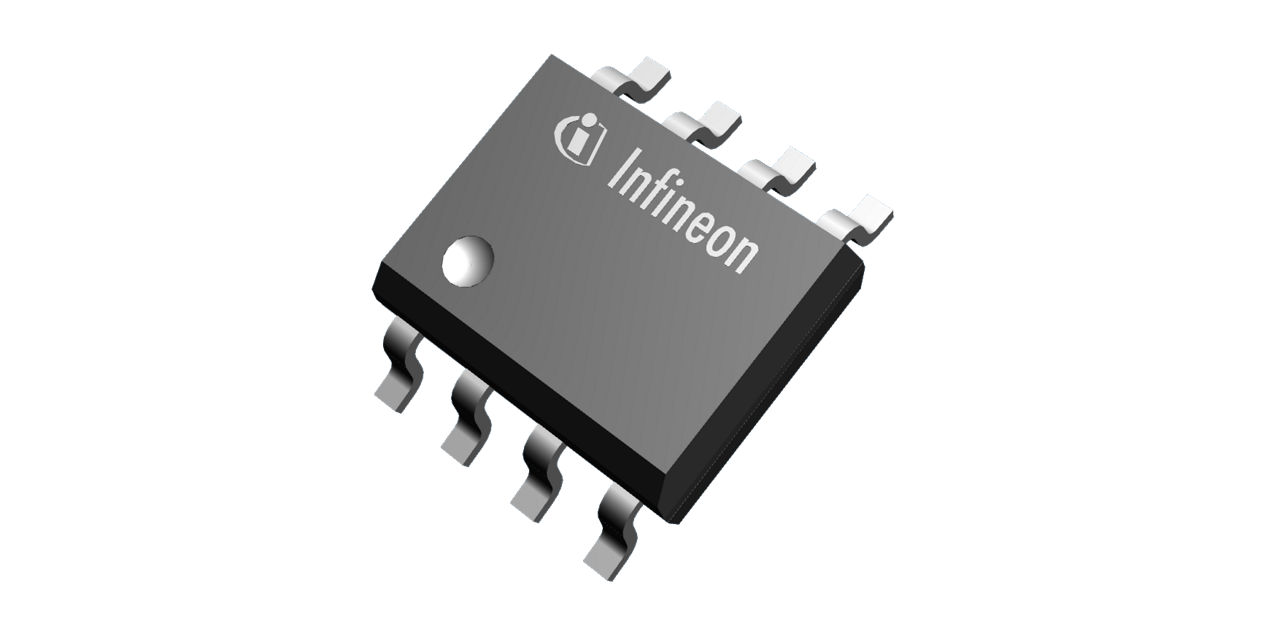

package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE7257SJ
TLE7257SJ
ea.
Data Sheet

Product details

  • Additional Features
    INH, EN
  • Bus Wake-Up Capability
    Yes
  • Family
    LIN Transceiver
  • Features
    INH Output, EN
  • Green
    RoHS compliant, Halogen free
  • Currently planned availability until at least
    2038
  • Qualification
    Automotive
  • Quiescent Current
    < 10 µA sleep mode
  • Standards
    LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602
  • Supply Voltage
    3.3 V, 5 V
  • Transmission Rate max
    20 kBit/s
  • Type
    LIN
  • Wake-up Inputs
    Bus Wake-up
Recommended
OPN
TLE7257SJXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
TLE7257: Designed for in-vehicle networks (up to 20kbps). Acts as bus driver between protocol controller and LIN network. Compliant to LIN standards, wide supply range. Supports modes, controls components. Sleep mode: <10μA quiescent current, wakes up on LIN bus traffic. Low leakage current on BUS pin. Infineon BiCMOS for ESD robustness, high EMC. Low EME across frequency range, battery voltage independent. AEC qualified for automotive.

Features

  • Single-wire LIN transceiver, 20 kbps
  • Compliant to ISO 17987-4, SAE J2602
  • Current consumption in Sleep mode
  • Very low leakage current on the BUS pin
  • Digital I/O levels compatible with 3.3 V
  • TxD protected with dominant time-out
  • Temp protection & undervoltage detection
  • ESD: ±10 kV (IEC61000-4-2)
  • High electromagnetic compatibility
  • PG-DSO-8 and PG-TSON-8 Packages
  • PG-TSON-8 package AOI support
