TLE49SRC8D

NEW
Dual channel magnetic angle sensor with outstanding stray field robustness, high accuracy and ASIL level D
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

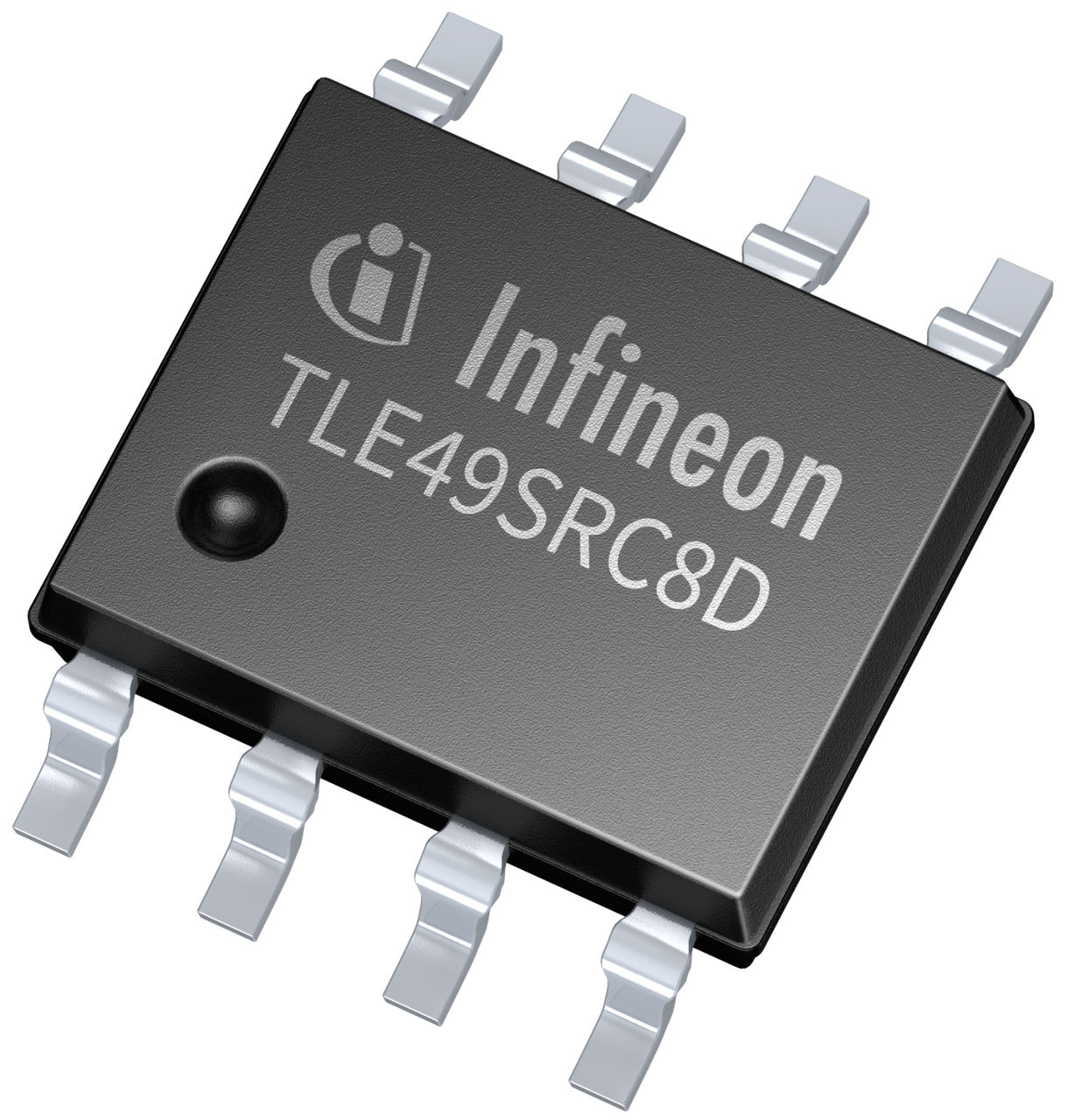

TLE49SRC8D
TLE49SRC8D
ea.
Data Sheet

Product details

  • Classification
    ISO 26262-compliant
  • Interfaces
    SPC
  • Magnetic field
    10 mT to 90 mT
  • Package
    SMD
  • Supply Voltage
    -21 V to 26 V
  • Technology
    Hall
  • Temperature
    -40 °C to 150 °C
Recommended
OPN
TLE49SRC8DXUMA1
Product Status active and preferred
Infineon Package
PG-TDSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TDSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLE49SRC8D includes a comprehensive set of on-chip components, including spatially separated Hall- , temperature-, and stress sensors, as well as a signal conditioning circuit, analog-to-digital converters, and a digital signal processor. Additionally, the IC includes a clock, voltage regulators and internal protection circuitry to ensure safe and reliable operation.

Features

  • Stray field Immunity (ISO 11452-1:2015)
  • Excellent angle performance
  • Very low jitter delay ±1µs
  • Very fast response time 9.8µs ~ 26ms
  • EEPROM for customized configuration
  • ISO 26262-compliant, ASIL D

Benefits

  • No need of external shielding
  • Angle error < 0.5° with Look-Up table
  • For Highly responsive, fast systems
  • Easy design with flexibility
  • Frame holder mechanism for SPC-sensors
  • Dual die for redundant ASIL D systems

Applications
