TLE42794E

The TLE42794E is a monolithic integrated low dropout voltage regulator. An input voltage up to 45 V is regulated to an output voltage of 5.0 V.
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE42794E
TLE42794E
Data Sheet

Product details

  • Accuracy
    2 %
  • Budgetary Price €/1k
    0.59
  • Dropout Voltage
    250 mV
  • Early Warning
    yes
  • Enable (=Inhibit)
    no
  • Family
    OPTIREG™ linear General Purpose
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    5.5 V to 45 V
  • Output Current max
    100 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    no
  • Currently planned availability until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    150 µA
  • Regulator Type
    General Purpose
  • Reset
    yes
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLE42794EXUMA1
Product Status active and preferred
Infineon Package
PG-SSOP-14
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-SSOP-14
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The component is able to drive loads up to 150 mA. It is short-circuit protected by the implemented current limitation and has an integrated over temperature shutdown. A reset signal is generated for an output voltage V Q,rt ; of typically 4.65 V.

Features

  • Output Voltage 5 V ± 2%
  • Output Current up to 150 mA
  • Very low Current Consumption
  • Early Warning
  • Power-on and Undervoltage Reset with PDT
  • Reset Low Down to V Q; = 1 V
  • Adjustable Reset Threshold
  • Very Low Dropout Voltage
  • Output Current Limitation
  • Reverse Polarity Protection
  • Over temperature Protection
  • Suitable for Automotive Electronics

Benefits

  • Robust protection features
  • Wide input & temp range operation

Applications

Diagrams

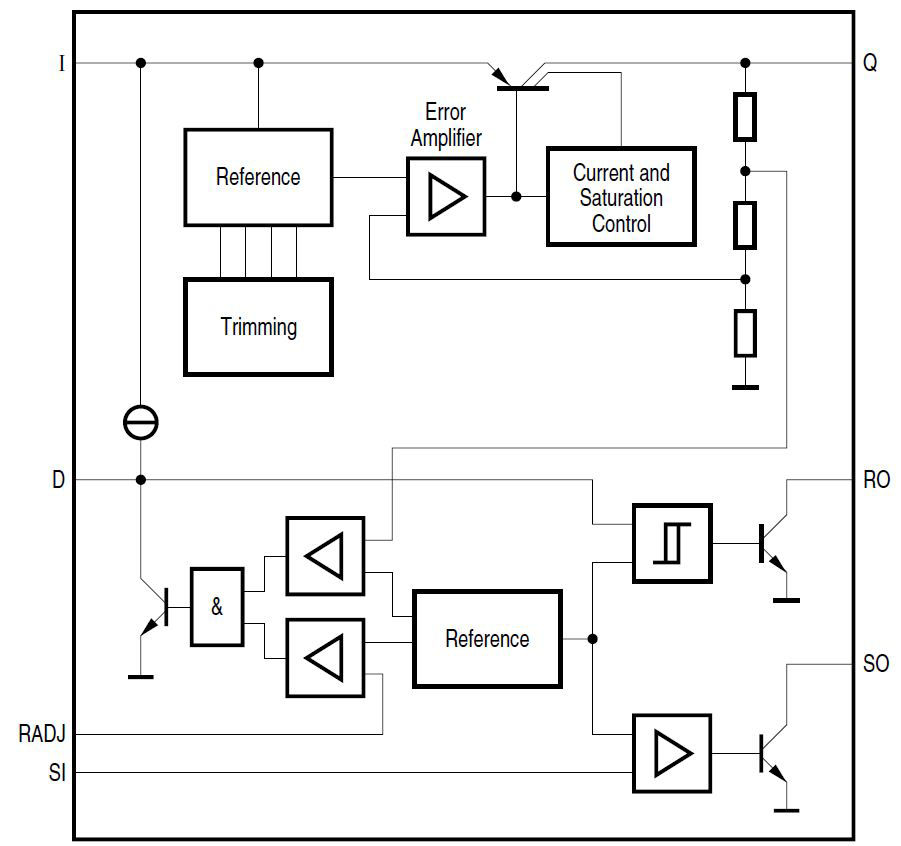

TLE42794-Block-Diagram
TLE42794-Block-Diagram
TLE42794-Block-Diagram TLE42794-Block-Diagram TLE42794-Block-Diagram
×
