Active and preferred
RoHS Compliant

TLE42764GV

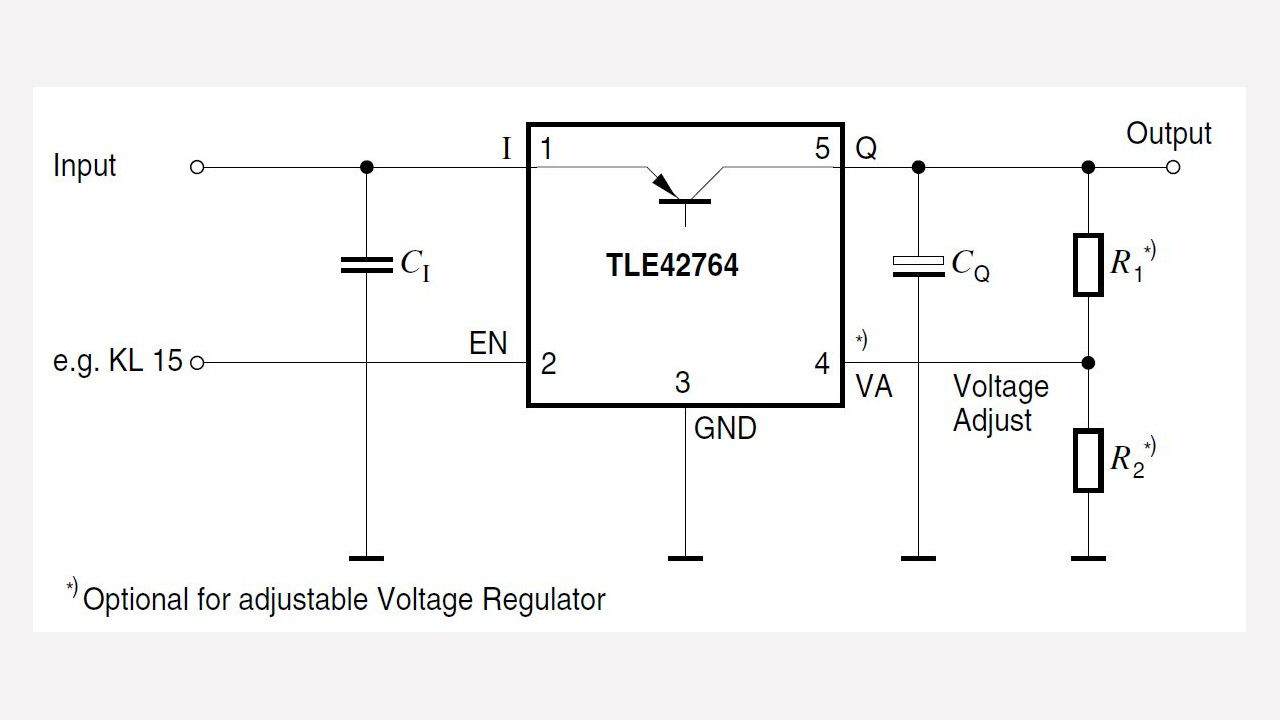

The TLE42764GV is a monolithic integrated low dropout voltage regulator for load currents up to 400 mA.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE42764GV
TLE42764GV
ea.
Data Sheet

Product details

  • Accuracy
    2 %
  • Base Product
    TLE42764
  • Budgetary Price €/1k
    0.82
  • Dropout Voltage
    250 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Family
    OPTIREG™ linear General Purpose
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    4.5 V to 40 V
  • Output Current max
    400 mA
  • Output Voltage Type
    adj.
  • Over Voltage Protection
    no
  • Currently planned availability until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    100 µA
  • Regulator Type
    General Purpose
  • Reset
    no
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLE42764GVATMA1
Product Status active and preferred
Infineon Package
PG-TO263-5
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO263-5
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The device is designed for the harsh environment of automotive applications.

Features

  • Very Low Current Consumption
  • Adjustable and 5 V Fixed Output V ±2%
  • Output Current up to 400 mA
  • Enable Input
  • Very Low Dropout Voltage
  • Output Current Limitation
  • Reverse Polarity Protection
  • Wide Temp Range From -40°C up to 150°C
  • Green Product (RoHS compliant)
  • AEC Qualified

Benefits

  • Robust protection features
  • Wide input & temp range operation
