TLE42694-2EL

The TLE42694-2EL is a monolithic integrated low dropout voltage regulator,especially designed for automotive applications.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE42694-2EL
TLE42694-2EL
ea.
Data Sheet

Product details

  • Accuracy
    2 %
  • Budgetary Price €/1k
    0.55
  • Dropout Voltage
    200 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    no
  • Family
    OPTIREG™ linear General Purpose
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    5.5 V to 45 V
  • Output Current max
    150 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    no
  • Planned to be available until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    280 µA
  • Regulator Type
    General Purpose
  • Reset
    yes
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLE426942ELXUMA1
Product Status active and preferred
Infineon Package
PG-SSOP-14
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SSOP-14
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Regulated to 5.0V, this component handles input voltage up to 45V (with reverse polarity protection). It can drive loads up to 150mA. Internal features prevent damage from overloads. Reset signal generated for VQ,rt (typically 4.65V), adjustable with external resistor divider. Program reset delay time with external delay capacitor.

Features

  • Output Voltage 5 V ± 2%
  • Ouput Current up to 150 mA
  • Very Low Current Consumption
  • Power-on and Undervoltage Reset with PDT
  • Reset Low Down to V Q = 1 V
  • Adjustable Reset Threshold
  • Output Current Limitation
  • Reverse Polarity Protection
  • Overtemperature Protection
  • Suitable for Automotive Electronics
  • Temperature Range -40 °C ≤ T j ≤ 150 °C

Benefits

  • Robust regulation with EMC optimization
  • Very low dropout

Diagrams

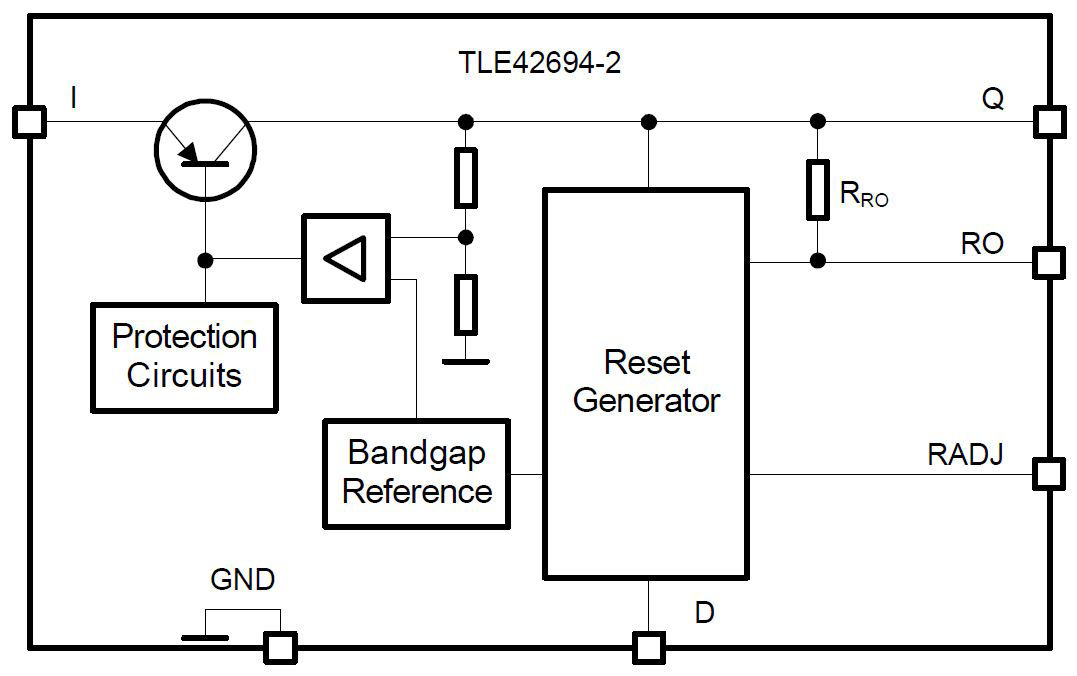

TLE42694-2-Block-Diagram
TLE42694-2-Block-Diagram
TLE42694-2-Block-Diagram TLE42694-2-Block-Diagram TLE42694-2-Block-Diagram
×
