TLD1125EL

LITIX™ Basic TLD1125EL is a one channel high side driver IC with integrated output stages
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLD1125EL
TLD1125EL
ea.
Data Sheet

Product details

  • Control Inputs
    1
  • Family
    LITIX™ Basic
  • Feedback Output
    No
  • Inhibit
    Yes
  • Iq
    0.1 µA
  • Language
    SPICE
  • Open Load Detection
    Yes
  • Operating Temperature
    -40 °C to 150 °C
  • Output Channels
    1
  • Output Current
    180 mA
  • Planned to be available until at least
    2038
  • Product Category
    Automotive Lighting ICs
  • PWM engine
    Yes
  • PWM
    Yes
  • Short Circuit Protection
    Yes
  • Short GND Detection
    Yes
  • Tolerance
    7%
  • Topology
    Linear
  • VQ (multiple)
    40.0 V
  • VS
    5.5 V to 40 V
Recommended
OPN
TLD1125ELXUMA1
Product Status active and preferred
Infineon Package
PG-SSOP-14
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SSOP-14
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
LITIX ™ Basic TLD1125EL is a one channel high side driver IC with integrated output stage. It is designed to control LEDs with a current up to 360 mA. In typical automotive applications the device is capable to drive i.e. 3 red LEDs with a current up to 180 mA, which is limited by thermal cooling aspects. The output current is controlled practically independent of load and supply voltage changes.

Features

  • Integrated O/P,optimized to drive LEDs
  • Output current up to 360mA per channel
  • Low current consumption in sleep mode
  • PWM-operation supported via VS-&EN-pin
  • Output current adjustable
  • Reverse polarity protection
  • Undervoltage detection
  • Open load&short circuit to GND diagnosis
  • Wide temperature range:-40 °C<150 °C
  • PG-SSOP14 package with exposed heatslug
  • Green Product (RoHS compliant)

Applications

Diagrams

tld1125el
tld1125el
tld1125el tld1125el tld1125el

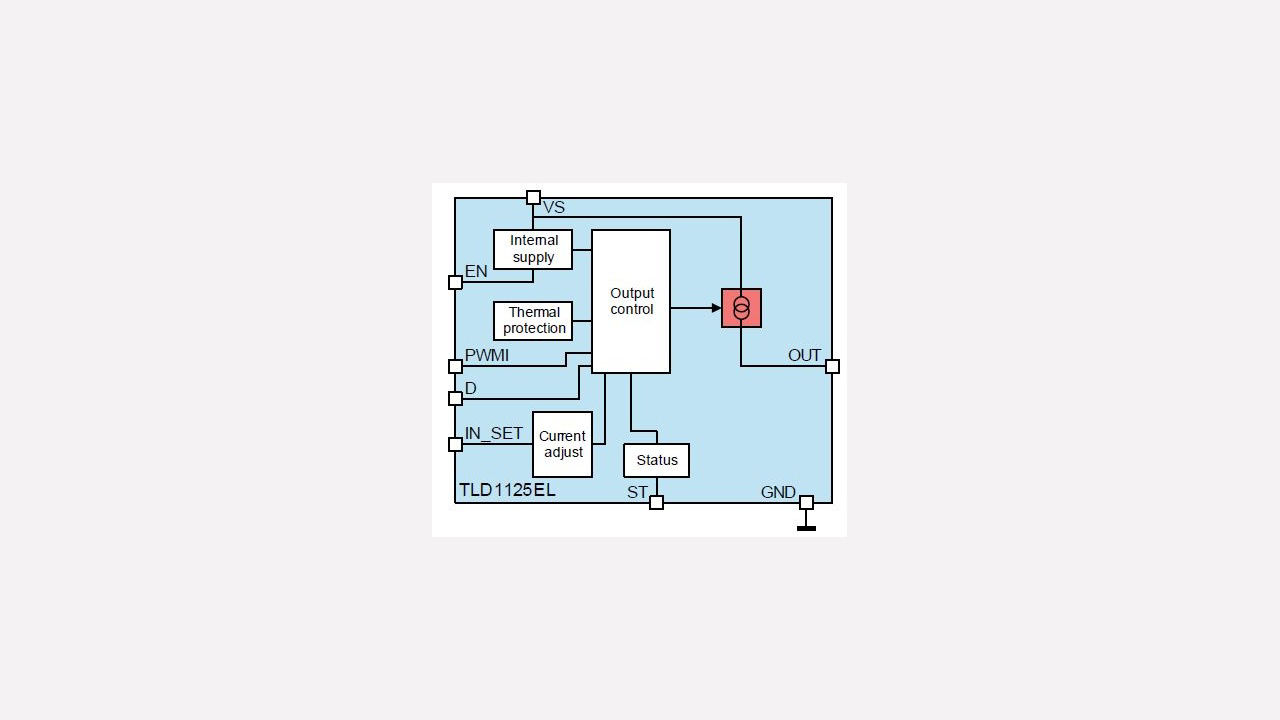

Block_Diagram_TLD1125EL Block_Diagram_TLD1125EL Block_Diagram_TLD1125EL
×
