not for new design
RoHS Compliant
Lead-free

TD92N16KOF

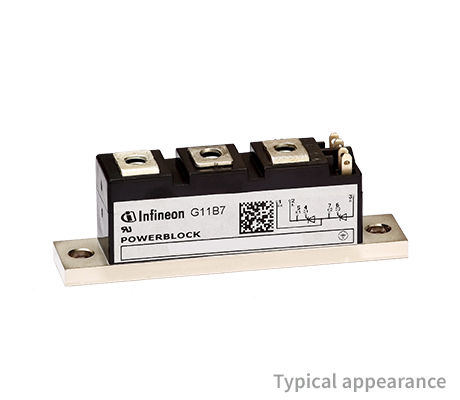

20 mm Thyristor/Diode Module with 1600 V in pressure contact technology
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TD92N16KOF
TD92N16KOF
Data Sheet

Product details

  • (diT/dt)cr [A/µs] (@DIN IEC 747- 6)
    150
  • Configuration
    SCR / Diode Phase Control
  • Housing
    20 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    92/85
  • IFSM / ITSM [A] (@10ms, Tvj max)
    1800
  • Product Line
    Power Block
  • rT [mΩ] (@Tvj max)
    2.43
  • RthJC [K/W] (@180° el sin)
    0.37
  • Tvj [°C]
    140
  • VDRM / VRRM [V]
    1600
  • VT0 [V] (@Tvj max)
    0.85
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    16.2
OPN
TD92N16KOFHPSA1
Product Status not for new design
Infineon Package BG-PB20-1
Package Name N/A
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package BG-PB20-1
Package Name -
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Thyristor/Diode 20 mm Power Block 1600 V, 92 A module for phase control in pressure contact technology using an isolated copper base plate.

Features

  • Pressure contact technology
  • Industrial standard package
  • Electrically insulated baseplate
  • Short on fail
  • Highest robustness and reliability

Applications
