TD330N16KOF TIM

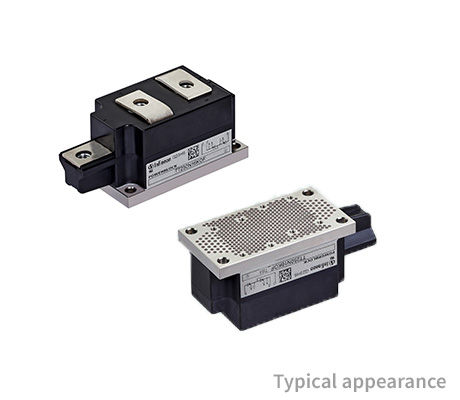

50 mm Thyristor/Diode Module with 1600 V in pressure contact technology
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TD330N16KOF TIM
TD330N16KOF TIM
ea.
Data Sheet

Product details

  • (diT/dt)cr [A/µs] (@DIN IEC 747- 6)
    250
  • Configuration
    SCR / Diode Phase Control
  • Features
    TIM
  • Housing
    50 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    330/85
  • IFSM / ITSM [A] (@10ms, Tvj max)
    10000
  • Product Line
    Power Block
  • rT [mΩ] (@Tvj max)
    0.5
  • RthJC [K/W] (@180° el sin)
    0.112
  • Tvj [°C]
    130
  • VDRM / VRRM [V]
    1600
  • VT0 [V] (@Tvj max)
    0.8
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    500
Recommended
OPN
TD330N16KOFTIMHPSA1
Product Status active and preferred
Infineon Package BG-PB50AT-1
Package Name N/A
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package BG-PB50AT-1
Package Name -
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Thyristor/Diode 50 mm Power Block 1600 V, 330 A module for phase control with high reliable pressure contact technology and Thermal Interface Material (TIM). With TIM modules a reproducible thermal performance of power electronic systems will be achieved.

Features

  • Pressure contact technology
  • Industrial standard package
  • Electrically insulated baseplate
  • Short on fail
  • Highest robustness
