T930N36TOF VT

Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

T930N36TOF VT
T930N36TOF VT
Data Sheet

Product details

  • Clamping force [kn]
    20 to 45
  • Configuration
    Electrical Triggered Phase Control Thyristor
  • Housing
    Disc dia 75mm height 26mm / Ceramic
  • ITAVM/TC [A/°C] (@180° el sin)
    930/85
  • ITAVM
    930 (180 ° el sin)
  • ITSM [A] (@10ms, Tvj max)
    17500
  • ITSM
    17500 A
  • rT [mΩ] (@Tvj max) max
    0.43
  • RthJC [K/kW] (@180° el sin) max
    21.5
  • tq [µs]
    500
  • Tvj [°C] max
    125
  • VDRM / VRRM [V]
    3600
  • VDRM/ VRRM (V)
    3600 V
  • VT/IT [V/kA] (@Tvj max)
    2.70/3.6
  • VT0 [V] (@Tvj max) max
    1
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    1530
Recommended
OPN
T930N36TOFVTXPSA1
Product Status active and preferred
Infineon Package BG-T5726K-1
Package Name N/A
Packing Size 4
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package BG-T5726K-1
Package Name -
Packing Size 4
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

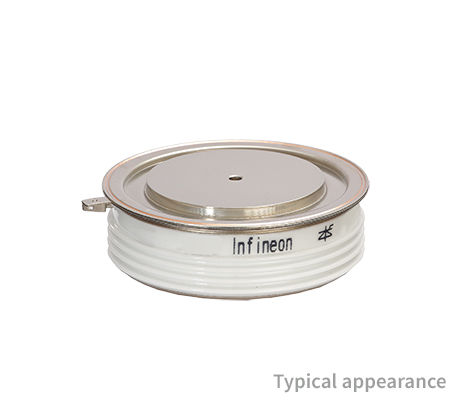

The T930N Phase Control Thyristor discs are assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 75mm and a height of 26mm.

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
