T3800N16TOF VT

END OF LIFE
1600 V phase control thyristor disc
Data Sheet
View replacement

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

T3800N16TOF VT
T3800N16TOF VT
View replacement
Data Sheet

Product details

  • Clamping force [kn]
    42 to 95
  • Configuration
    Electrical Triggered Phase Control Thyristor
  • Housing
    Disc dia 111mm height 26mm / Ceramic
  • ITAVM/TC [A/°C] (@180° el sin)
    3800/85
  • ITAVM
    3800 (180° el sin)
  • ITSM [A] (@10ms, Tvj max)
    53000
  • ITSM
    53000 A
  • RthJC [K/kW] (@180° el sin) max
    8.5
  • tq [µs]
    250
  • Tvj [°C] max
    135
  • VDRM / VRRM [V]
    1600
  • VDRM/ VRRM (V)
    1600 V
  • VT/IT [V/kA]
    1.28/6.0 (@Tvj max)
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    14045
OPN
T3800N16TOFVTXPSA1
Product Status discontinued
Infineon Package BG-T11126K-1
Package Name N/A
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
View replacement

Product Status discontinued
Infineon Package BG-T11126K-1
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

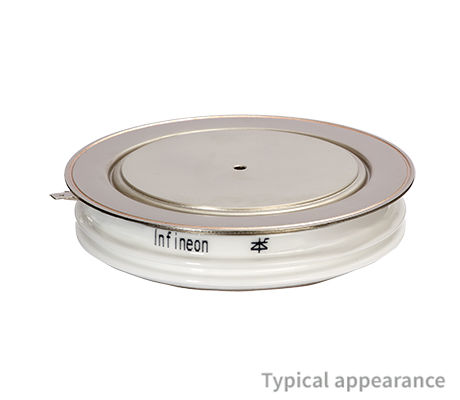

Phase Control Thyristor 1600 V, 3800 A with 111 mm diameter and a height of 26 mm assembled in high reliable, robust and hermetic sealed ceramic housings. The T3800N prime disc is specially optimized for UPS-Bypass applications and offers the highest current capability in the market.

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • Maximum junction temperature 135° C
