T2600N18TOF VT

1800 V phase control thyristor disc
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

T2600N18TOF VT
T2600N18TOF VT
ea.
Data Sheet

Product details

  • Clamping force [kn]
    30 to 65
  • Configuration
    Electrical Triggered Phase Control Thyristor
  • Housing
    Disc dia 100mm height 26mm / Ceramic
  • ITAVM/TC [A/°C] (@180° el sin)
    2610/85
  • ITAVM
    2610 (180° el sin)
  • ITSM [A] (@10ms, Tvj max)
    36000
  • ITSM
    36000 A
  • RthJC [K/kW] (@180° el sin) max
    12.5
  • tq [µs]
    250
  • Tvj [°C] max
    135
  • VDRM / VRRM [V]
    1800
  • VDRM/ VRRM (V)
    1800 V
  • VT/IT [V/kA]
    1.70/8.0 (@Tvj max)
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    6480
Recommended
OPN
T2600N18TOFVTXPSA1
Product Status active and preferred
Infineon Package BG-T10026K-1
Package Name N/A
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package BG-T10026K-1
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

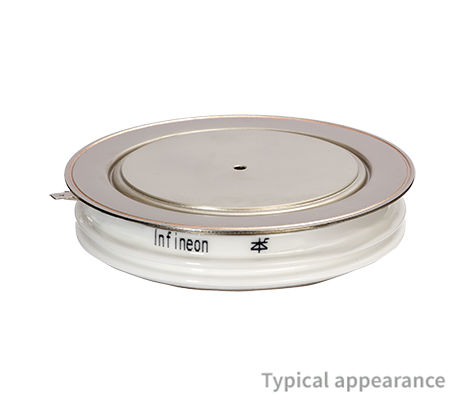

Phase Control Thyristor 1800 V, 2610 A with 100 mm diameter and a height of 26 mm assembled in high reliable, robust and hermetic sealed ceramic housings. The T2600N prime disc is specially optimized for UPS-Bypass applications and offers the highest current capability in the market.

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • Maximum junction temperature 135° C
