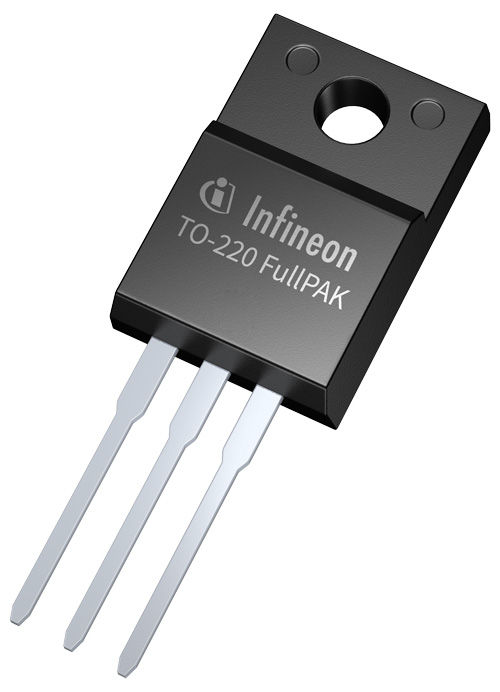

SPA07N60CFD
SPA07N60CFD
Data Sheet

Product details

  • ID max
    6.6 A
  • ID (@25°C) max
    6.6 A
  • IDpuls max
    17 A
  • Mounting
    THT
  • Operating Temperature min
    -55 °C
  • Package
    TO-220 FullPAK
  • Polarity
    N
  • Ptot max
    32 W
  • QG
    35 nC
  • QG (typ @10V)
    35 nC
  • RDS (on) (@10V) max
    700 mΩ
  • RDS (on) max
    700 mΩ
  • RthJA max
    62 K/W
  • RthJC max
    3.9 K/W
  • Rth
    3.9 K/W
  • VDS max
    600 V
  • VGS(th)
    3 V to 5 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
CoolMOS™ is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle and pioneered by Infineon Technologies. 600V CoolMOS™ CFD series combines the experience of the leading SJ MOSFET supplier with high class innovation. Replacement for CoolMOS™ CFD is 600V CoolMOS™ CFD7

Characteristics and applications of CoolMOS ™ CFD2
Improved cost performance, light load efficiency and ease-of-use in EMI and low voltage overshoot. Soft switching resonant topologies with hard commutation requirements requiring a fast body diode.

Features

  • Fourth series of CoolMOS™ market entry in 2004
  • Fast Body Diode, Qrr 1/10th of C3 series, Vth 4 V, g fs high, Rg low
  • Specific for phase-shift ZVS and DC-AC power applications

Benefits

  • Improved efficiency
  • More efficient, more compact, lighter and cooler
  • Outstanding reliability with proven CoolMOS™ quality combined with high body diode ruggedness

Applications
