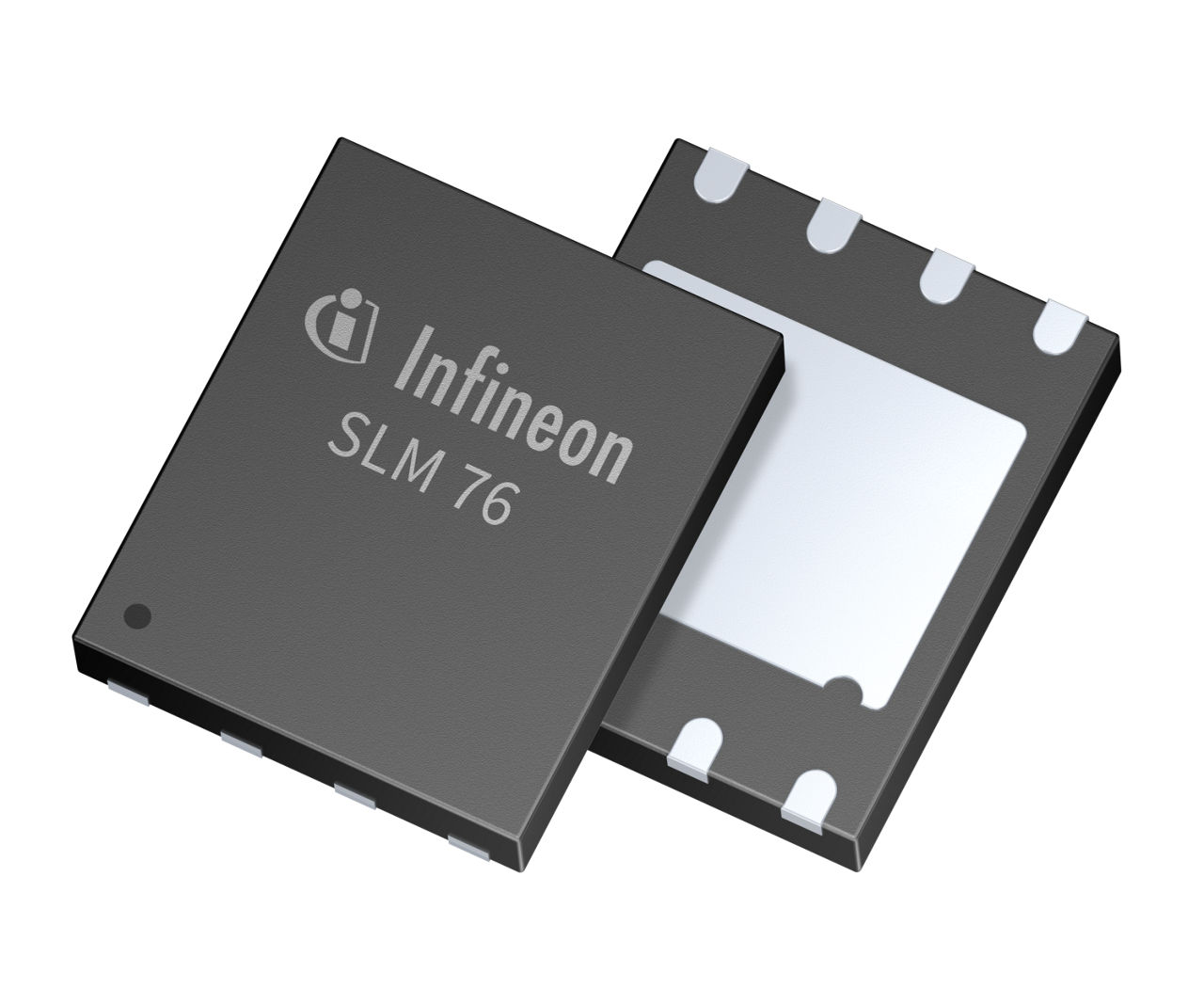

SLM 76CF3201P

SLM 76CF2561P 16-bit security controller

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SLM 76CF3201P
SLM 76CF3201P

Product details

  • Ambient Temperature
    -40 °C to 105 °C
  • Applications
    industrial applications, SIM
  • CPU
    16-bit
  • Delivery Forms
    sawn wafer
  • Interfaces
    ISO 7816
  • Leading Technologies
    SOLID FLASH™
  • NVM
    320 kByte
  • Product Description
    security controller, optimized for industrial applications (SIM)
  • RAM
    8 kByte
  • Symmetric Cryptography
    AES up to 256-bit, DES, 3DES
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
Our long-established family of industrial-grade 16-bit security controllers is available in different memory sizes and designed to work in challenging environmental and usage conditions. It provides field-proven quality for reliable cellular connectivity in mission-critical applications. The SLM 76CF3201P has 320 kB of NVM.

Features

  • 16-bit CPU
  • 320 kB SOLID FLASH™
  • Symmetric cryptography (AES, DES, 3DES)
  • ISO 7816 interface
  • Industrial grade ( -40° to 105°C)
  • 8 kB RAM

Applications
