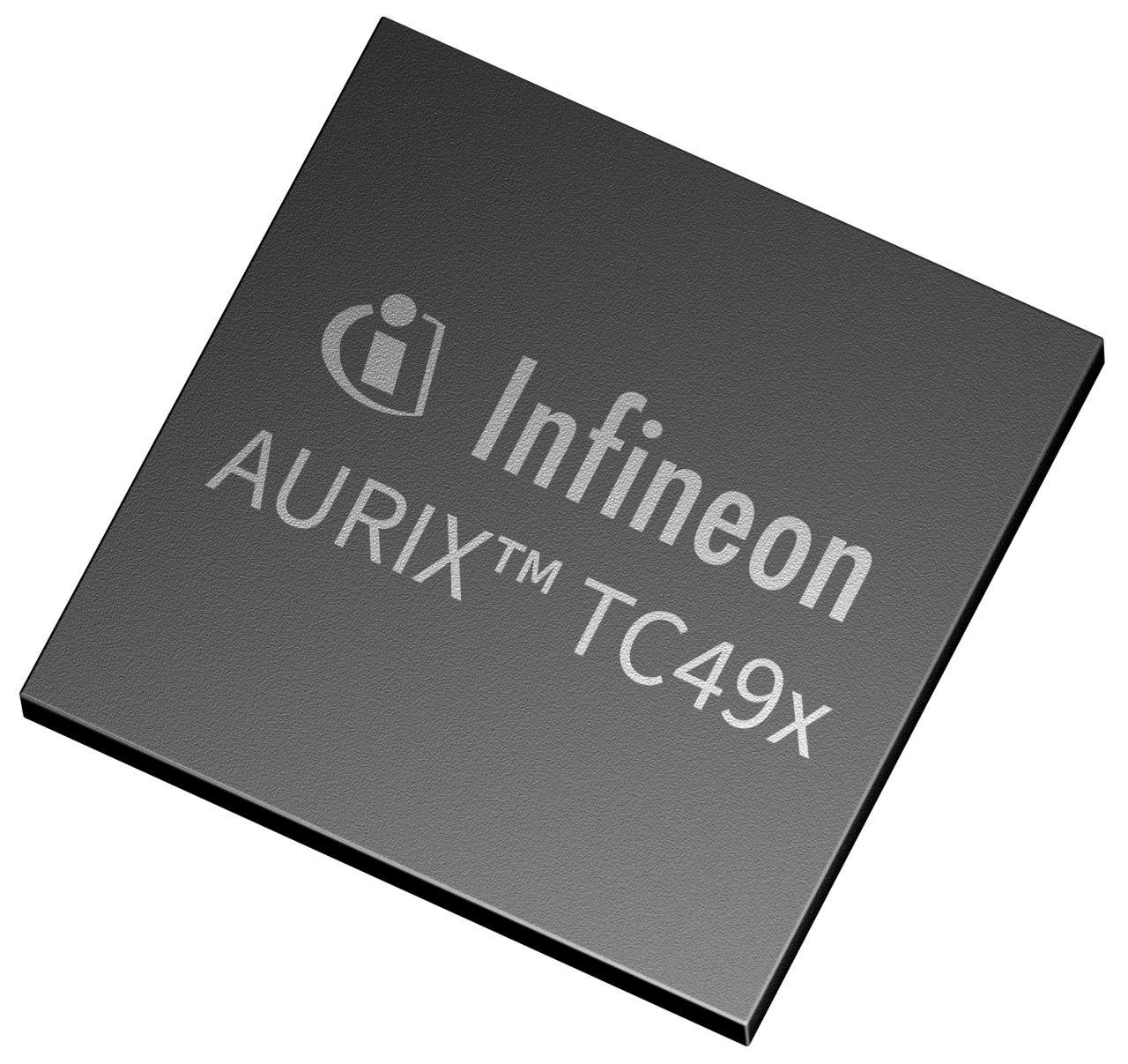

SAK-TC499PP-20MF400MS AB
NEW
Active and preferred
RoHS Compliant
Lead-free

SAK-TC499PP-20MF400MS AB

NEW
High-performance microcontroller for xEV-integration platforms and high-end Engine Management
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SAK-TC499PP-20MF400MS AB
SAK-TC499PP-20MF400MS AB
Data Sheet

Product details

  • # of cores / lockstep cores
    5/5
  • A/D Input Lines
    10
  • ASIL/SIL support
    ASIL-D/SIL-3
  • CAN Nodes
    4/4x4
  • Classification
    ISO 26262-compliant
  • DMA Channels
    128
  • DSP Functionality
    Yes
  • External Bus Interface
    Yes
  • Floating Point Unit
    Yes
  • Hardware Accelerator
    Yes
  • LIN
    8
  • On-chip Clock Generation
    Yes
  • On-chip Voltage Regulator
    Yes
  • Oscillator Watchdog
    Yes
  • Program Memory min
    20 MByte, 20 MByte, 20 MByte
  • Program Memory
    20 MByte, 20 MByte
  • Real Time Clock
    Yes
  • SPU
    1
  • SRAM with ECC
    6550 kByte
  • Temperature
    -40°C - +150 °C
  • Type of Serial I/O Interfaces
    eFlash
  • Watchdog Timer
    Yes
Recommended
OPN
TC499PP20MF400MSABKXUMA1
Product Status active and preferred
Infineon Package PG-F2BGA-436
Package Name N/A
Packing Size 500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package PG-F2BGA-436
Package Name -
Packing Size 500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
AURIX™ TC499 belongs to the third generation of AURIX™ TC4x family. It provides an increase in performance, memory sizes, connectivity interrfaces, and scalability addressing the latest automotive market trends and challenges. It provides 5 cores at 400 MHz, up to 20 MB of Flash memory and a rich ADC & timer set up as well as a Parallel Processing Unit (PPU) to enable modelling cases and AI. It is ISO26262 safety and ISO21434 security compliance.

Features

  • 5/5 lockstep TriCore™
  • 1 extra TriCore™ for security
  • 400 MHz clock frequency
  • 20 MB eflash + 1 MB for security
  • Up to 6.1 MB SRAM
  • High speed communication interfaces
  • Above EVITA Full CSRM
  • AUTOSAR support
  • Parallel Processing Unit (PPU)
  • Data Routing Engine (DRE)
  • Converter DSP (CDSP)

Benefits

  • ASIL-D performance with 4 lockstep CPUs
  • PPU 256 bit enables innovation
  • Future-proven cybersecurity cluster
  • ISO21434 compliant
  • Post-quantum ready
  • Strong SW partner ecosystem
