PXM1310CDM-G003

Digital Dual Output 3+1 VR12.5 & VR13 DDR Memory Controller
Data Sheet

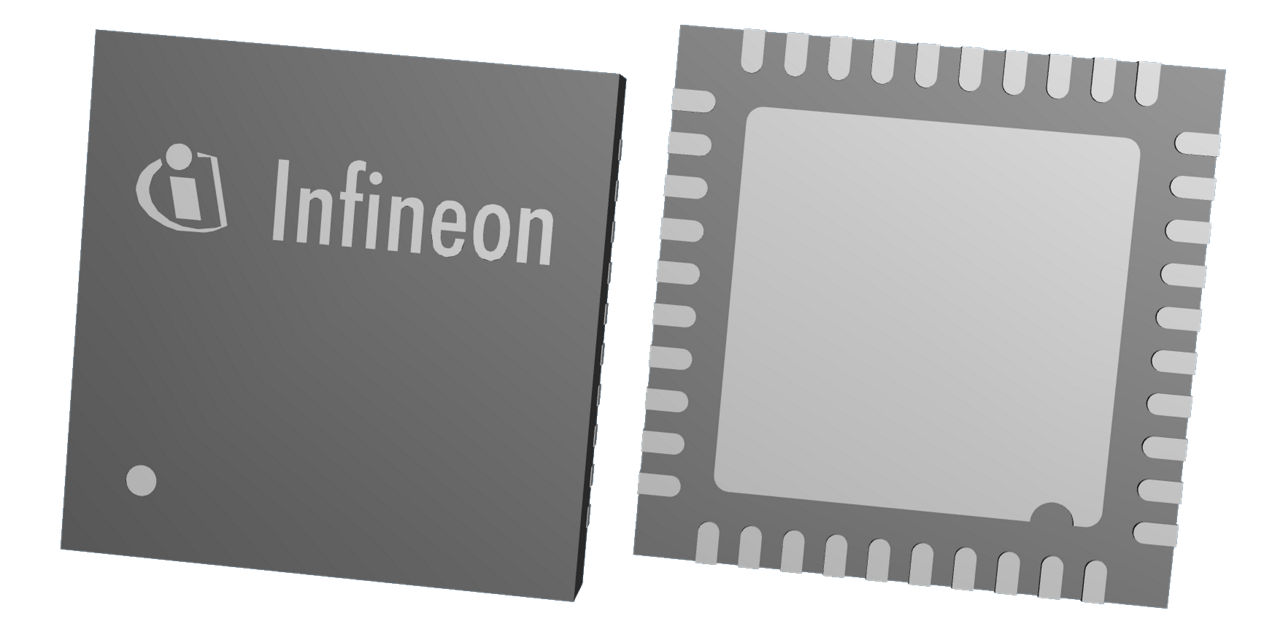

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

PXM1310CDM-G003
PXM1310CDM-G003
Data Sheet

Product details

  • Configuration
    3+1
  • Interfaces
    I2C, VR13
  • Maximum Phases
    4
  • Moisture Sensitivity Level
    1
  • Package
    QFN 5 x 5 40-pin
  • Processor Type
    Intel VR13
  • Qualification
    Industrial
  • Technology
    DCIC
  • Voltage Outputs
    2
Recommended
OPN
PXM1310CDMG003XTMA1
Product Status active
Infineon Package
PG-VQFN-40
Package Name N/A
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VQFN-40
Package Name -
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Infineon enterprise digital controllers provide intelligent power for Intel™ VR12.5 & VR13 applications. Command & monitor functions are controlled through the Intel SVID interface . Infineon’s memory controllers utilize digital technology to implement all control functions, providing flexibility and stability. Active Transient Response (ATR) modulation and fast DVID response enable optimal response to high load transients.

Features

  • 3+1 multiphase control
  • Digital control loop
  • Intel™ VR12.5 & VR13 interface
  • PMBus™ interface
  • -5°C to +85°C ambient temperature range

Benefits

  • Digital control improves transient
  • Proprietary control for efficiency
  • Monitoring, telemetry via PMBus
