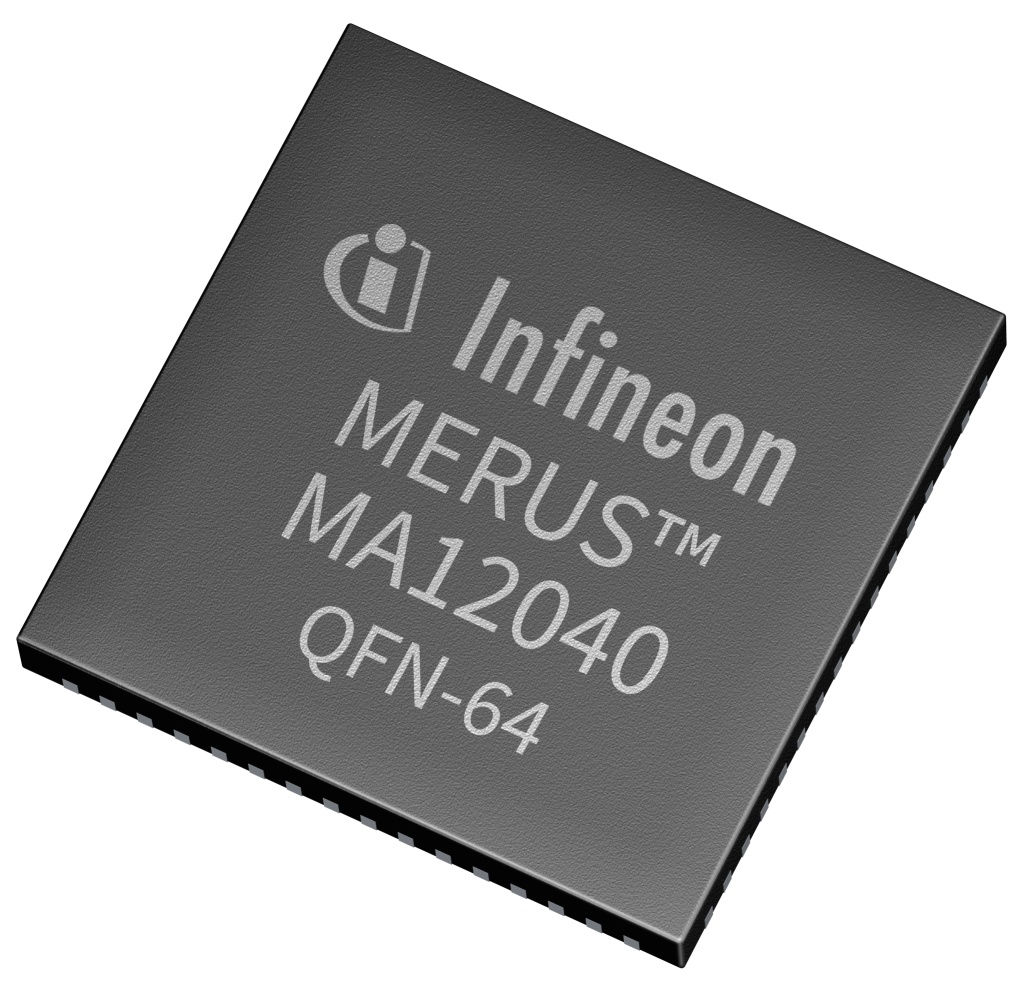

MA12040

END OF LIFE
2x40W ultra power efficient, fully Integrated audio amplifier IC with analog input
Data Sheet
board
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

MA12040
MA12040
Data Sheet

Product details

  • Audio Input Type
    Analog
  • Description
    Integrated 40W - 2xBTL/4xSE channel analog input multi-level class-D amplifier
  • Output Power ((W per channel))
    40 W
  • Package
    QFN 64 pins
  • Speaker Channels
    2xBTL/4xSE
  • Supply Voltage ((V))
    18
OPN
MA12040XUMA1
Product Status discontinued
Infineon Package PG-VQFN-64
Package Name N/A
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package PG-VQFN-64
Package Name -
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
This product is not for a new design. Check out our new MERUS™ multilevel gen2 class D amplifiers MA2304DNS and MA2304PNS .MA12040 is a highly efficient, fully integrated, digital audio power amplifier IC, based on multi-level switching technology. It supports a 4-18V supply voltage range, allowing it to be used in many different audio applications.

Features

  • Multi-level switching technology with 3-level and 5-level modulation
  • 2x40W peak output power (18V PVDD, RL = 4Ω, 10% THD+N level)
  • Supply Voltages: +4V to +18V (PVDD) and +5V (A/DVDD)
  • Suitable for 2.0, 2.1, 4.0, 1.0 output stage configurations
  • 4th order feedback error control
  • <100mW idle power dissipation (18V PVDD, all channels switching)
  • >79% efficiency at 1W power (1kHz sine, 8Ω)
  • >92% efficiency at full power (1kHz sine, 8Ω)
  • Audio performance (PMP2): >107dB DNR (A-w, rel. to 1% THD+N power level)
  • 55µV output integrated noise (A-w)
  • 0.003% THD+N at high output levels
  • I2C control (four selectable addresses)
  • Built-in protection: under-voltage-lockout, over-temperature warning/error, short-circuit/overload protection, power stage pin-to-pin short-circuit, error-reporting through serial interface (I2C), DC protection

Benefits

  • Unparalleled power efficiency - optimized for music playback with very low power losses and cool operation
  • Ultra compact, fully integrated solution - high power output in a small form factor
  • HD audio quality & best in class audio performance - high dynamic range, low distortion, low noise
  • Low interference / EMI emission - EMC compliance without use of large filter component
  • High suppression of supply ripples
  • Reduced BoM and associated system cost savings
  • Reduction of battery sizes through better power efficiency
  • Eliminates complex dynamic rail tracking
  • Offers filter-less amplification and eliminates LC filters in many applications
  • Heatsink free operation with EPAD-down package
  • Flexible solution - highly configurable for tailored performance in individual applications
