Active
RoHS Compliant

ISZ0703NLS

OptiMOS™ low-voltage power MOSFETs - perfectly addressing the needs of charger and adapter designs
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ISZ0703NLS
ISZ0703NLS
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.33
  • ID (@25°C) max
    56 A
  • Operating Temperature
    -55 °C to 175 °C

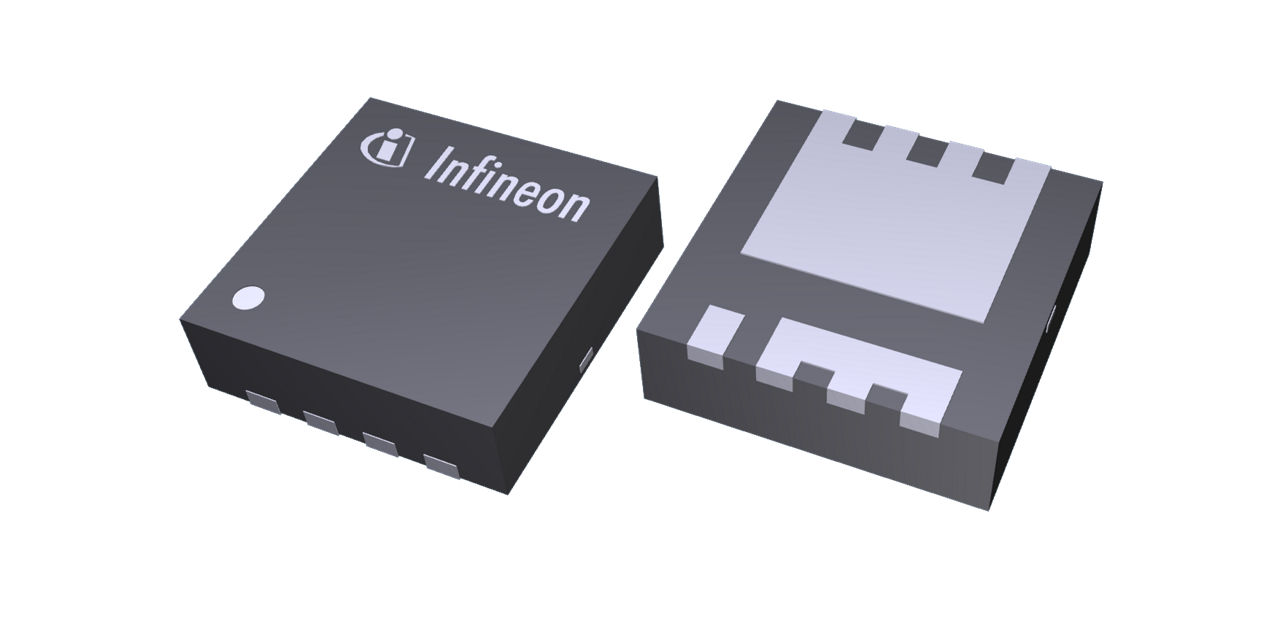

  • Package
    PQFN 3.3 x 3.3 Fused Lead
  • Polarity
    N
  • QG (typ @10V)
    17 nC
  • QG (typ @4.5V)
    8.7 nC
  • RDS (on) (@10V) max
    7.3 mΩ
  • RDS (on) (@4.5V) max
    9.2 mΩ
  • VDS max
    60 V
  • VGS(th)
    1.7 V
Recommended
OPN
ISZ0703NLSATMA1
Product Status active
Infineon Package
PG-TSDSON-8
Package Name PQFN 3.3 x 3.3
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSDSON-8
Package Name PQFN 3.3 x 3.3
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
OptiMOS™ PD power MOSFET is Infineon’s portfolio targeting USB-PD and adapter applications . The products offer fast ramp-up and optimized lead times. OptiMOS™ low-voltage MOSFETs for power delivery enable designs with less parts leading to BOM cost reduction. OptiMOS™ PD features quality products in compact, lightweight packages.

Features

  • Logic level availability
  • Low on-state resistance RDSon
  • Output and reverse recovery charge
  • Excellent thermal behavior
  • Available in 2 small standard packages

Benefits

  • Short lead times
  • Quick quote response
  • Optimal efficiency and power density
  • Green, light, compact items
  • Excellent price-performance ratio

Applications
